5 Tons Loading Capacity Wheeled Front End Loader 857 Model with Grass Grapple Cummins Engine for Option

China 5 Tons Loading Capacity Wheeled Front End Loader 857 Model with Grass Grapple Cummins Engine for Option supplier
5 Tons Loading Capacity Wheeled Front End Loader 857 Model with Grass Grapple Cummins Engine for Option supplier 5 Tons Loading Capacity Wheeled Front End Loader 857 Model with Grass Grapple Cummins Engine for Option supplier

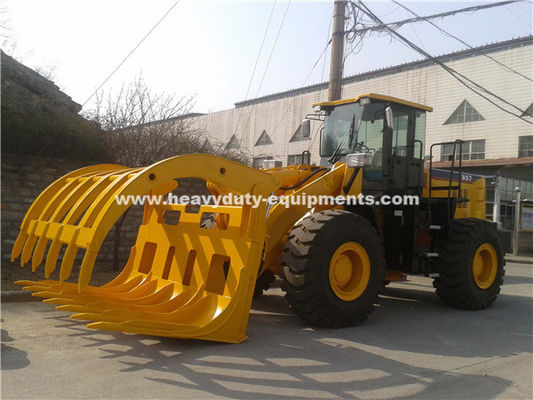

Large Image :  5 Tons Loading Capacity Wheeled Front End Loader 857 Model with Grass Grapple Cummins Engine for Option

Product Details:

Place of Origin: CHINA
Brand Name: SINOMTP
Certification: CO
Model Number: 857

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD
Packaging Details: NUDE OR CONTAINER
Delivery Time: 35 WORKING DAYS
Supply Ability: 300 UNITS PER MONTH
Contact Now
Detailed Product Description
Engine: Weichai SteyrWD10G220E22 Engine Power: 162kw
Transmission: YJ375 Power Shift Normally Engaged Straight Gear Total Time: 9.5s
Loading Capacity: 5000kg Operating Weight: 16800kg
High Light:

Wheel Loader equipment

,

heavy equipment loader

5tons Loading Capacity Front End Loader 857 Model with Grass Grapple Cummins Engine for Option



Performance 1 rated load 5000kg
2 overall weight 16800kg
3 rated bucket capacity 3m3
4 maximum tractive force 152KN
5 maximum breakout force ≥170KN
6 maximum grade ability 30℃
7 maximum dump height 3150mm
8 maximum dump reach 1250mm
9 overall dimension (L×W×H) 7920×3050×3400mm
10 minimum turning radius 6640mm
Engine 11 model Weichai SteyrWD10G220E22
12 type lnline water cooling dry cylinder injection
13 No. of cylinder-bore/stroke 6-126×130mm
14 rated power 162kw--2000r/min
15 maximum torque 860N.m
16 min fuel-consume ratio ≤215g/kw.h
Transmission system 17 torque converter YJ375
18 gearbox mode Power shift normally engaged straight gear
19 gear shift 4 forward shift 4reverse shift
20 maximum speed 38km/h
Drive axles 21

main reducing spiral



bevel gear grade 1reduction
22 decelerating mode planetary reduction,grade 1
23 wheel base (mm) 3200mm
24 wheel tread 2250mm
25 minimum ground clearance 450mm
Hydraulic system 26 system working pressure 18MPa
27 boom lifting time 5.95±0.2s
28 total time 10.95±0.5s
29 fuel tank capacity 300L
30 function of leveling automatically yes



Brake system

31 service brake air over hydraulic disc brake on 4 wheels
32 parking brake manual parking brake
Tyre 33 type specification 23.5-25
34 front tyre pressure 0.4Mpa
35 rear tyre pressure 0.35Mpa





 5 Tons Loading Capacity Wheeled Front End Loader 857 Model with Grass Grapple Cummins Engine for Option
