Product Details:
Payment & Shipping Terms:
|
Engine: | Shangchai SC11CB200G2B1 | Engine Power: | 162kw |
---|---|---|---|
Transmission: | ZF4WG200 | Total Time: | 9.5s |
Loading Capacity: | 5000kg | Operating Weight: | 16800kg |
High Light: | Wheel Loader equipment,heavy equipment loader |

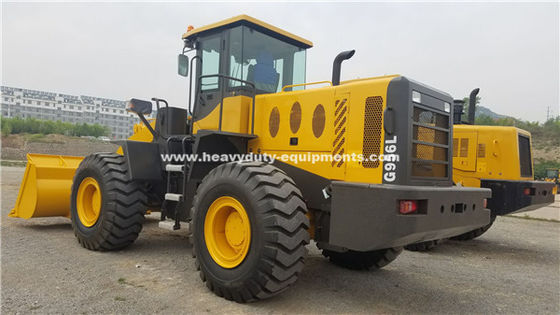

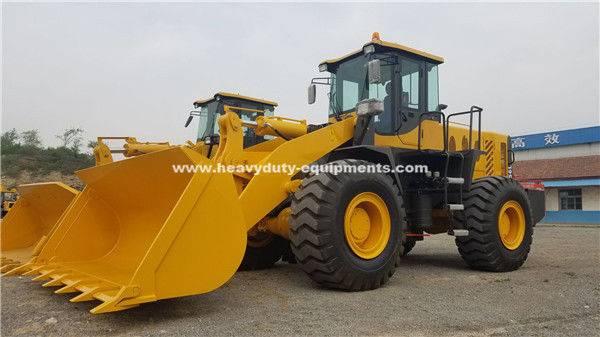

3m3 Rock Bucket 5tons Wheel Loader LG956L with Shangchai SC11CB200G2B1 Engine
Performance | 1 | rated load | 5000kg |
2 | overall weight | 16800kg | |
3 | rated bucket capacity | 3m3 | |
4 | maximum tractive force | 152KN | |
5 | maximum breakout force | ≥170KN | |
6 | maximum grade ability | 30℃ | |
7 | maximum dump height | 3150mm | |
8 | maximum dump reach | 1250mm | |
9 | overall dimension (L×W×H) | 7920×3050×3400mm | |
10 | minimum turning radius | 6640mm | |
Engine | 11 | model | SC11CB200G2B1 |
12 | type | lnline water cooling dry cylinder injection | |
13 | No. of cylinder-bore/stroke | 6-126×130mm | |
14 | rated power | 162kw--2000r/min | |
15 | maximum torque | 860N.m | |
16 | min fuel-consume ratio | ≤215g/kw.h | |
Transmission system | 17 | torque converter | YJ375 |
18 | gearbox mode | Power shift normally engaged straight gear | |
19 | gear shift | 4 forward shift 4reverse shift | |
20 | maximum speed | 38km/h | |
Drive axles | 21 |
main reducing spiral
|
bevel gear grade 1reduction |
22 | decelerating mode | planetary reduction,grade 1 | |
23 | wheel base (mm) | 3200mm | |
24 | wheel tread | 2250mm | |
25 | minimum ground clearance | 450mm | |
Hydraulic system | 26 | system working pressure | 18MPa |
27 | boom lifting time | 5.95±0.2s | |
28 | total time | 10.95±0.5s | |
29 | fuel tank capacity | 300L | |
30 | function of leveling automatically | yes | |
Brake system |
31 | service brake | air over hydraulic disc brake on 4 wheels |
32 | parking brake | manual parking brake | |
Tyre | 33 | type specification | 23.5-25 |
34 | front tyre pressure | 0.4Mpa | |
35 | rear tyre pressure | 0.35Mpa |
