Product Details:
Payment & Shipping Terms:
|
| Engine: | WEICHAI DEUTZ | System Working Pressure: | 16.5MPa |
|---|---|---|---|
| Axle: | Sinomtp Axle | Cabin: | Standard |
| Boom Lifting Time: | 4.83s | Rated Power: | 92kw |
| Cabin Color: | Black | ||
| High Light: | Wheel Loader equipment,loader construction equipment |
||

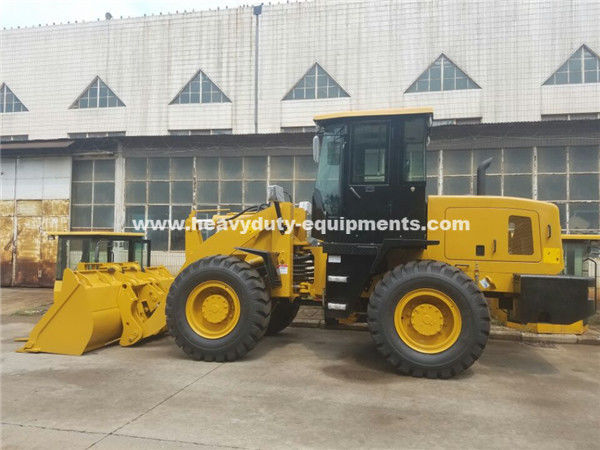

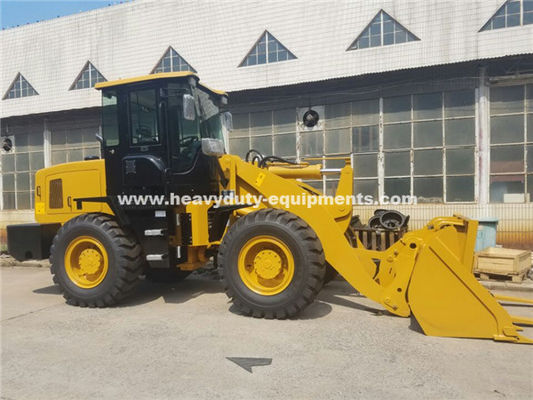

SINOMTP LG936 WHEEL LOADER 3 TONS WITH WEICHAI DEUTZ ENGINE AND BLACK CABIN
SPECIFICATION:
| Engine | 11 | model | Deutz WP6G125E22 |
| 12 | type | lnline water cooled, four stroke | |
| 13 | No. of cylinder-bore/stroke | 6—108×125mm | |
| 14 | rated power | 92kw | |
| 15 | maximum torque | 500N.m | |
| 16 | min fuel-consume ratio | ≤210g/kw.h | |
| Transmission system | 17 | torque converter | YJ315—x |
| 18 | gearbox mode | Power shift normally engaged straight gear | |
| 19 | gear shift | 4forward shift 2 reverse shift | |
| 20 | maximum speed | 40km/h | |
| Drive axles | 21 | main reducing mode | Bevel gear grade lreduction |
| 22 | decelerating mode | Bevel gear grade lreduction | |
| 23 | wheel base (mm) | 2660mm | |
| 24 | wheel tread | 1800mm | |
| 25 | ground clearance | 400mm | |
| Hydraulic system | 26 | system working pressure | 16.5MPa |
| 27 | boom lifting time | 4.83s | |
| 28 | total time | 9.15s±0.5s | |
| 29 | fuel tank capacity | 156L | |
| 30 | function of leveling automatically | yes | |
| Brake system | 31 | service brake | air assist disc brake on 4 wheels |
| 32 | parking brake | Manual disk brake | |
| Tyre | 33 | type specification | 17.5-25 |
| 34 | front tyre pressure | 0.4Mpa | |
| 35 | rear tyre pressure | 0.35Mpa |
