LG938 Front End Loader With Weichai Engine And 3000kg Rated Loading Capacity For Mining Site Using

China LG938 Front End Loader With Weichai Engine And 3000kg Rated Loading Capacity For Mining Site Using supplier
LG938 Front End Loader With Weichai Engine And 3000kg Rated Loading Capacity For Mining Site Using supplier LG938 Front End Loader With Weichai Engine And 3000kg Rated Loading Capacity For Mining Site Using supplier LG938 Front End Loader With Weichai Engine And 3000kg Rated Loading Capacity For Mining Site Using supplier

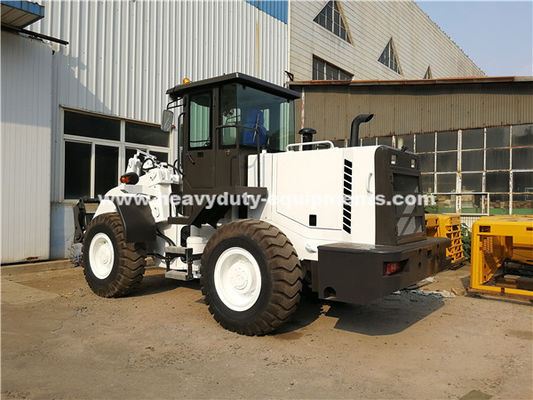

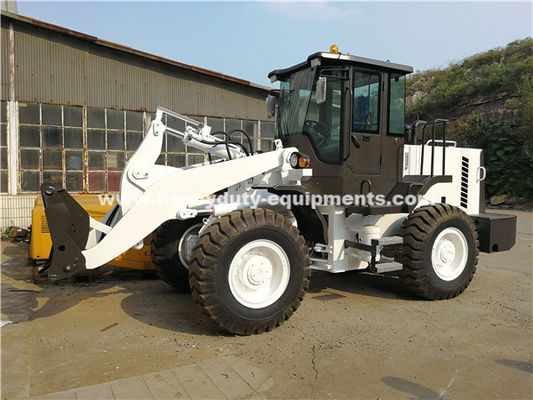

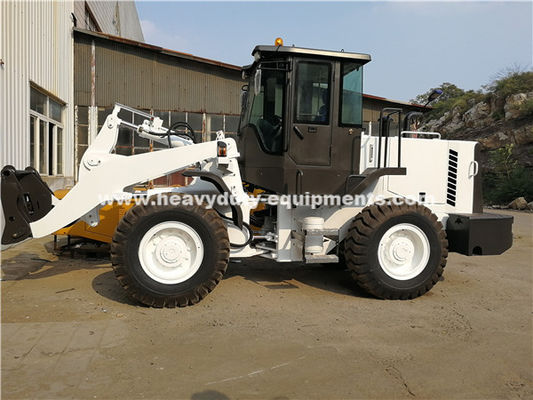

Large Image :  LG938 Front End Loader With Weichai Engine And 3000kg Rated Loading Capacity For Mining Site Using

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: LG938

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: NUDE
Delivery Time: 35 days after payment
Supply Ability: 100 units per month
Detailed Product Description
Model: LG938 Engine: Weichai
Rate Power: 92kw Maximum Torque: 500N.m
Boom Lifting Time: 4.83s Maximum Dump Height: 3100

LG938 front end wheel loader with Weichai engine and 3000kg rated loading capacity for mining site using



SPECIFICATION:



Performance 1 rated loading 3000kg
  2 overall weight 9800kg
  3 rated bucket capacity 1.8m3
  4 maximum tractive force 97KN
  5 maximum breakout force 127KN
  6 maximum grade ability 30℃
  7 maximum dump height 3100
  8 maximum dump reach 1006mm
  9 overall dimension (L×W×H) 6890×2430×3070mm
  10 minimum turning radius 5097mm
Engine 11 model Deutz WP6G125E22
  12 type lnline water cooled, four stroke
  13 No. of cylinder-bore/stroke 6—108×125mm
  14 rated power 92kw
  15 maximum torque 500N.m
  16 min fuel-consume ratio

≤210g/kw.h

Drive axles 21 main reducing mode Bevel gear grade lreduction
  22 decelerating mode Bevel gear grade lreduction
  23 wheel base (mm) 2660mm
  24 wheel tread 1800mm
  25 ground clearance 400mm



LG938 Front End Loader With Weichai Engine And 3000kg Rated Loading Capacity For Mining Site UsingLG938 Front End Loader With Weichai Engine And 3000kg Rated Loading Capacity For Mining Site Using
