Sinomtp Lg933 3tons Wheel Shovel Loader With Cummins Engine And Zf Transmission

China Sinomtp Lg933 3tons Wheel Shovel Loader With Cummins Engine And Zf Transmission supplier

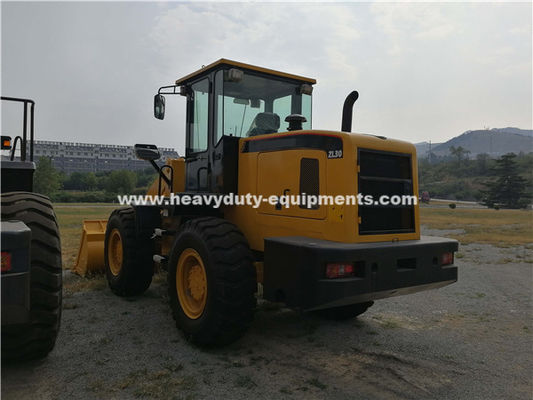

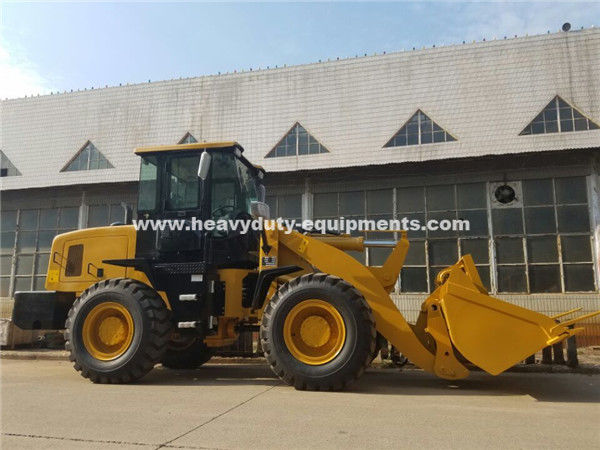

Large Image :  Sinomtp Lg933 3tons Wheel Shovel Loader With Cummins Engine And Zf Transmission

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: LG933

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: NUDE
Delivery Time: 35 days after payment
Supply Ability: 100 units per month
Detailed Product Description
Rated Loading: 3000KG Overall Weight: 9600kg
ENGINE: Cummins Maximum Tractive Force: 97KN
Maximum Dump Reach: 1006mm Overall Dimension (L×W×H): 6890×2430×3070mm

SINOMTP LG933 3TONS WHEEL LOADER WITH CUMMINS ENGINE AND ZF TRANSMISSION



SPECIFICATION





Engine 11 model CUMMINS
  12 type lnline water cooled, four stroke
  13 No. of cylinder-bore/stroke 6—108×125mm
  14 rated power 92kw
  15 maximum torque 500N.m
  16 min fuel-consume ratio ≤210g/kw.h
Transmission system 17 torque converter YJ315—x
  18 gearbox mode Power shift normally engaged straight gear
  19 gear shift 4forward shift 2 reverse shift
  20 maximum speed 40km/h
Drive axles 21 main reducing mode Bevel gear grade lreduction
  22 decelerating mode Bevel gear grade lreduction
  23 wheel base (mm) 2660mm
  24 wheel tread 1800mm
  25 ground clearance 400mm
Hydraulic system 26 system working pressure 16.5MPa
  27 boom lifting time 4.83s
  28 total time 9.15s±0.5s
  29 fuel tank capacity 156L
  30 function of leveling automatically yes
Brake system 31 service brake air assist disc brake on 4 wheels
  32 parking brake Manual disk brake
Tyre 33 type specification 17.5-25
  34 front tyre pressure 0.4Mpa
  35 rear tyre pressure 0.35Mpa



DESCRIPTION:



Sinomtp Lg933 3tons Wheel Shovel Loader With Cummins Engine And Zf TransmissionSinomtp Lg933 3tons Wheel Shovel Loader With Cummins Engine And Zf Transmission
