Sinomtp Lg933 3 Tons Loader Construction Equipment With Weichai Deutz Engine And Zf Transmission

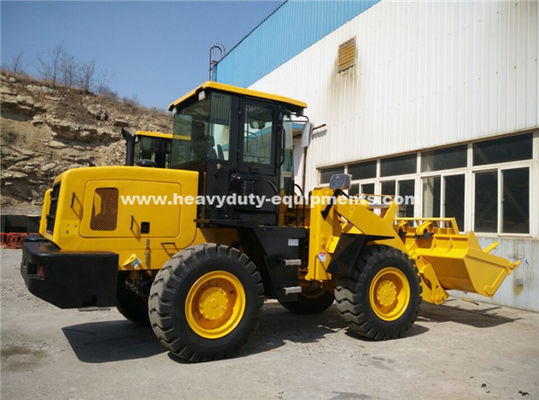

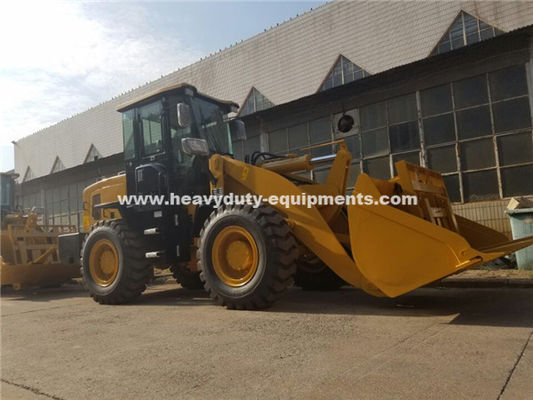

Large Image : Sinomtp Lg933 3 Tons Loader Construction Equipment With Weichai Deutz Engine And Zf Transmission

Product Details:

Place of Origin:	China
Brand Name:	SINOMTP
Certification:	ISO/CCC/BV
Model Number:	LG933

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	NUDE
Delivery Time:	35 days after payment
Supply Ability:	100 units per month

Contact Now

Detailed Product Description

Rated Loading:	3000KG	Overall Weight:	9600kg
ENGINE:	WEICHAI DEUTZ	TRANSMISSION:	ZF
Minimum Turning Radius:	5097mm	Overall Dimension (L×W×H):	6890×2430×3070mm
High Light:	Wheel Loader equipment , heavy equipment loader

SINOMTP LG933 3TONS WHEEL LOADER WITH WEICHAI DEUTZ ENGINE AND ZF TRANSMISSION

SPECIFICATION

Engine	11	model	CUMMINS
	12	type	lnline water cooled, four stroke
	13	No. of cylinder-bore/stroke	6—108×125mm
	14	rated power	92kw
	15	maximum torque	500N.m
	16	min fuel-consume ratio	≤210g/kw.h
Transmission system	17	torque converter	YJ315—x
	18	gearbox mode	Power shift normally engaged straight gear
	19	gear shift	4forward shift 2 reverse shift
	20	maximum speed	40km/h
Drive axles	21	main reducing mode	Bevel gear grade lreduction
	22	decelerating mode	Bevel gear grade lreduction
	23	wheel base (mm)	2660mm
	24	wheel tread	1800mm
	25	ground clearance	400mm
Hydraulic system	26	system working pressure	16.5MPa
	27	boom lifting time	4.83s
	28	total time	9.15s±0.5s
	29	fuel tank capacity	156L
	30	function of leveling automatically	yes

DESCRIPTION:

Sinomtp Lg933 3 Tons Loader Construction Equipment With Weichai Deutz Engine And Zf Transmission
