Sinomtp 936 3tons Wheel Loader With Standard Axle And 9600kg Weight Heavy Equipment Loader

China Sinomtp 936 3tons Wheel Loader With Standard Axle And 9600kg Weight Heavy Equipment Loader supplier
Sinomtp 936 3tons Wheel Loader With Standard Axle And 9600kg Weight Heavy Equipment Loader supplier Sinomtp 936 3tons Wheel Loader With Standard Axle And 9600kg Weight Heavy Equipment Loader supplier

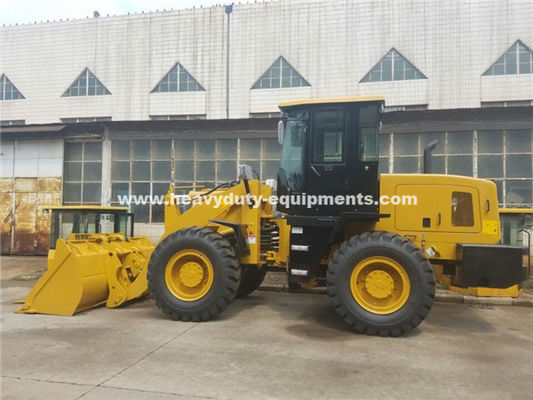

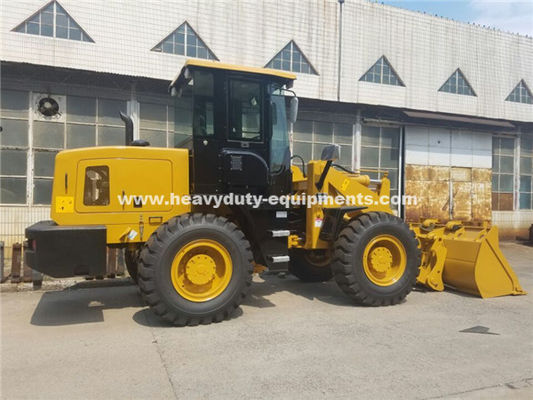

Large Image :  Sinomtp 936 3tons Wheel Loader With Standard Axle And 9600kg Weight Heavy Equipment Loader

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: 936

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: NUDE
Delivery Time: 35 days after payment
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Rated Loading: 3000KG Overall Weight: 9600kg
AXLE: STANDARD Rated Power: 92kw
Torque Converter: YJ315—x Overall Dimension (L×W×H): 6890×2430×3070mm
High Light:

Wheel Loader equipment

,

heavy equipment loader

SINOMTP 936 3TONS WHEEL LOADER WITH STANDARD AXLE AND 9600KG WEIGHT



SPECIFICATION





Performance 1 rated loading 3000kg
  2 overall weight 9600kg
  3 rated bucket capacity 1.7
  4 maximum tractive force 97KN
  5 maximum breakout force 127KN
  6 maximum grade ability 30℃
  7 maximum dump height 3100mm
  8 maximum dump reach 1006mm
  9 overall dimension (L×W×H) 6890×2430×3070mm
  10 minimum turning radius 5097mm
Engine 11 model Deutz WP6G125E22
  12 type lnline water cooled, four stroke
  13 No. of cylinder-bore/stroke 6—108×125mm
  14 rated power 92kw
  15 maximum torque 500N.m
  16 min fuel-consume ratio ≤210g/kw.h
Transmission system 17 torque converter YJ315—x
  18 gearbox mode Power shift normally engaged straight gear
  19 gear shift 4forward shift 2 reverse shift
  20 maximum speed 40km/h
Drive axles 21 main reducing mode Bevel gear grade lreduction
  22 decelerating mode Bevel gear grade lreduction
  23 wheel base (mm) 2660mm
  24 wheel tread 1800mm
  25 ground clearance 400mm



DESCRIPTION:



Sinomtp 936 3tons Wheel Loader With Standard Axle And 9600kg Weight Heavy Equipment LoaderSinomtp 936 3tons Wheel Loader With Standard Axle And 9600kg Weight Heavy Equipment Loader
