Payment & Shipping Terms:
|Production Capacity(8 Working Hours):||8640-11000 (390×190×190mm)||Max Production Capacity(two Lines):||22000(390×190×190mm)|
|Total Power:||31kw||Machine Dimensions:||5210×3530×2780mm 9,500×2,800×2,750mm|
|Gross Weight:||About 7.5T||Cycle Time:||15-20s|

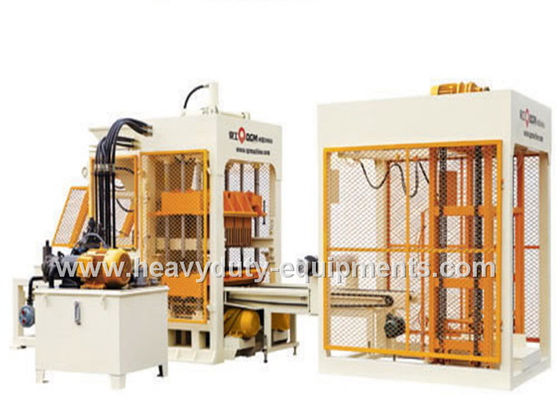

7.5 Ton Automatic Block Making Machine , 6 Pieces Per Mould Brick Forming Machine
|Production per Mould||6pcs/mould (Standard Block: 390x190x190mm)|
|Production capacity(8 Working Hours)||8640-11000 (390×190×190mm)|
|Max Production capacity(two lines)||22000(390×190×190mm)|
|Gross Weight||about 7.5T|
|Machine Dimensions||5210×3530×2780mm 9,500×2,800×2,750mm|
|Specifications for reference only, to prevail in kind.|
Uses Germany Siemens PLC control system and Siemens Touch Screen.The machinery is equipped with data input and output device. Control system consists of trouble-shooting system and logic control for safety.

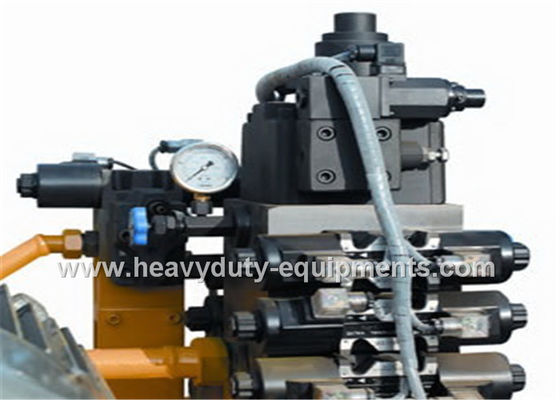

Uses high-dynamic proportional and directional valves in hydraulic system, which automatically adjust the oil flow and pressure as per specific working requirements. And it can precisely control the movement of important parts of machinery
Adopt high strength castings, the machinery is manufactured with special material, with the features of high rigidity and vibration resistance and long lifetime.
1.Use Frequency Conversional Control Technology
a) Under the frequency conversion control, this automatic block making machine utilizes the precise guide bearings to ensure the precise and parallel movement between the tamper head and mould.
b) With the frequency controlled vibration, the motors are controlled properly for its instantaneous start and stop.
c) This product is able to generally save20- 30% power.
d)adopt braking unit with resistor for turning off the machine in order to stop the excess energy consumption,which can solve the problem of inertia when machinery stop working.
e)adjusting the speed of electric motor is workable,and it can Improve product quality(Improve the density)
2. This automatic block making machine utilizes double proportional and directional valves with high activity to regulate the oil flow and pressure automatically, protecting the hydraulic cylinder from being damaged ,which plays a buffer role in the process of production. And this kind of design of machinery can ensure the stable production and prolong the lifetime of machine.
3. Adopt 360° Multi-shaft rotating and compulsory feeding to offer high speed rotating and compulsory feeding and uniform mixing for the materials .With the even feeding performance, this product is suited for diverse raw materials and moulds.
