Product Details:
Payment & Shipping Terms:
|
| Name: | Rock Bucket | Code: | 1690200003 |
|---|---|---|---|
| Rated Load: | 3t | Bucket Capacity: | 1.5 M3 |
| High Light: | construction equipment parts,heavy equipment parts |
||

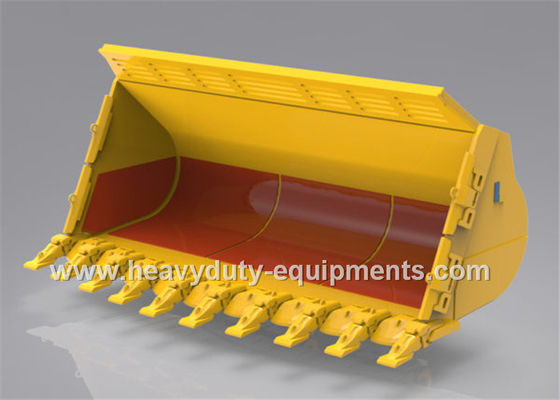

rock bucket of SDLG wheel loader with 1.5m3 bucket capacity made in China
Specification:
| Name | rock bucket |
Dumping distance (mm) |
1003 |
| Code | 1690200003 |
Min.steering radius (attachment)(mm) |
5860 |
| Bucket capacity (m3) | 1.5 | Overall dimension of WL (LxWxH) (mm) | 6952x2510x3087 |
| Attachment weight (kg) | 983 |
Min.steering radius (tyre) (mm) |
5349 |
|
Attachment dimension (LxWxH) (mm) |
2510x1222x1109 |
Max.breakour force (kN) |
≥100 |
| Rated load (t) | 3.0 | Operating weight (kg) | 10434 |
| Max.dumping height (mm) | 2996 | ||
Application:
Rock bucket is more reinforced than standard bucket, mainly used in loading stones; can be equipped to these models: LG933L, LG936L, LG938L, LG946L, LG952H, LG953, LG953N, LG956L, LG958L, LG959, LG968, LG978, LG979, LG989.
