Product Details:
Payment & Shipping Terms:
|
| Name: | LG93X LM Bucket | Code: | 1690200081 |
|---|---|---|---|
| Attachment Weight: | 951 Kg | Operating Weight: | 10900 Kg |
| High Light: | construction equipment parts,heavy machinery spare parts |
||

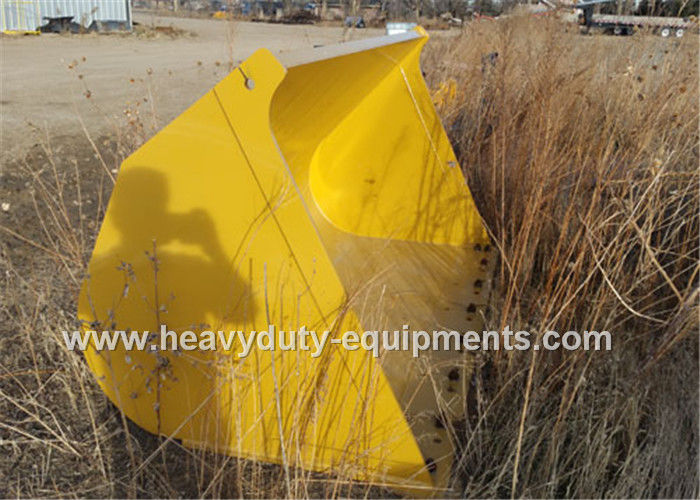

LG93X LM bucket of SDLG wheel loader with .5m3 bucket and 2510mm width
Specification:
| Name | LG93X LM bucket |
Dumping distance (mm) |
1208 |
| Code | 1690200081 |
Min.steering radius (attachment)(mm) |
6018 |
| Bucket capacity (m3) | 2.5 | Overall dimension of WL (LxWxH) (mm) | 7402x2310x3087 |
| Attachment weight (kg) | 951 |
Min.steering radius (tyre) (mm) |
5381 |
|
Attachment dimension (LxWxH) (mm) |
2510x1327x1287 |
Max.breakour force (kN) |
≥73 |
| Rated load (t) | 3 | Operating weight (kg) | 10900 |
| Max.dumping heght (mm) | 2793 | ||
| Recommended model of Wheel loder | LG938L | ||
Application:
LG93X LM bucket, mainly mainly used in loading bulk materials, can be equipped to these models: LG938L.
