Product Details:
Payment & Shipping Terms:
|
| Name: | LG959 Quick Coupler GP Bucket | Code: | 1690100158 |
|---|---|---|---|
| Attachment Weight: | 1450 Kg | Operating Weight: | 17350 Kg |
| High Light: | construction equipment parts,heavy machinery spare parts |
||

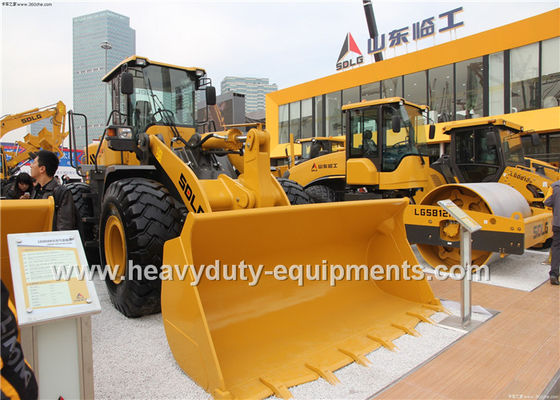

LG959 quick coupler GP bucket with 3.0m3 capacity and 5.0t rated load
Specification:
| Name |
LG959 quick coupler GP bucket |
Dumping distance (mm) |
1200 |
| Code | 1690100158 |
Min.steering radius (attachment)(mm) |
6775 |
| Bucket capacity (m3) | 3.0 | Overall dimension of WL (LxWxH) (mm) | 8304x3024x3545 |
| Attachment weight (kg) | 1450 |
Min.steering radius (tyre) (mm) |
6039 |
|
Attachment dimension (LxWxH) (mm) |
3024x1527x1326 |
Max.breakour force (kN) |
≥152 |
| Rated load (t) | 5.0 | Operating weight (kg) | 17350 |
| Max.dumping heght (mm) | 2945 | ||
| Recommended model of Wheel loder | LG958L | ||
Application:
LG959 quick coupler GP bucket, mainly used in loading ore, soil, stone, lime, can be equipped to these models: LG958L.
