|Working Device:||Standard Rod||VECU Or GPS:||VECU|
|Bucket Capacity:||1.2||Overall Operating Weight:||24300kg|
|Engine:||DDE BF6M1013||Max. Excavation Force:||176 KN|
hydraulic shovel excavator,
hydraulic system excavator

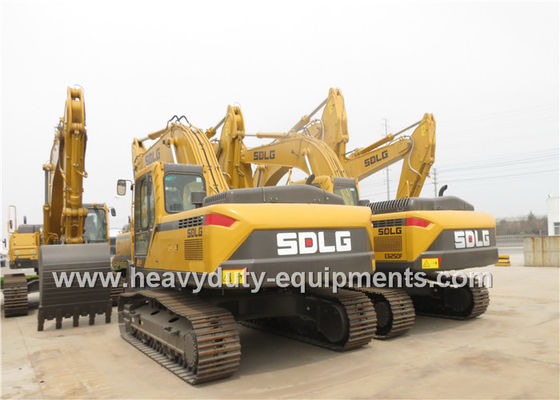

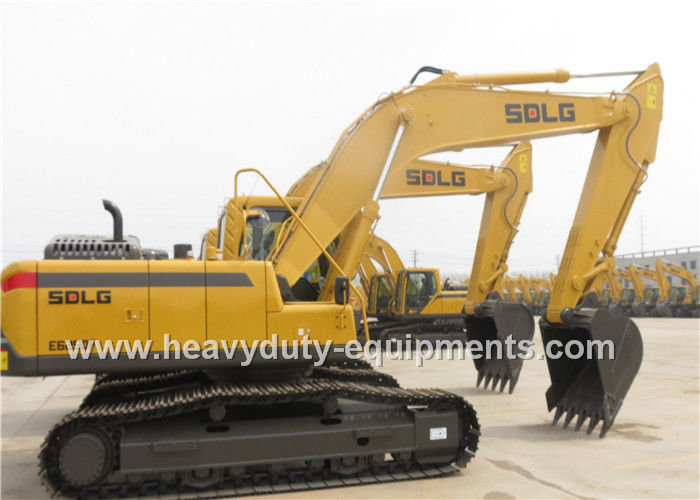

Hydraulic excavator LG6250E with 1 , 2m3 loading capacity in VOLVO techinique
|Engine||DDE BF6M1013||Working device||Standard rod|
|Overall operating weight||24300kg||Bucket capacity||1.2|
|Max. excavation force||176 KN||Swing speed||11.3 r/min|
|Max digging radius||10260mm||Max digging depth||6980mm|
|Max digging height||6800mm||Engine rated power||134kw|
|Length of boom||6000mm||Max climbing angle||35|
|Hydraulic system||pilot operation negative flow||VECU or GPS||VECU|
The LG6250E is a core product jointly crafted by experts of SDLG and VOLVO after a full investigation of the Chinese market. It has the high-strength chassis, reinforced working device and optimized matching power hydraulic system and suits for a variety of harsh operating conditions
1. The cab is bright and spacious, features wide vision and good sealing effect, and is equipped with the high-end shock absorbing seat, two-stage filtration A/C (cool/heat) and silicone oil rubber shock absorber with excellent damping effect; all of them offer a comfortable riding environment.
2. The X-type lower frame is provided with the lengthened crawler and widened chassis, which enables high stability of the complete machine; the reinforced working device is supplied as standard, so that the complete machine is more adapted to harsh operating conditions.
3. The turbocharged and intercooled engine is equipped with the second generation of Deutz electric governor system EMR2, featuring high power, economy and environment and high reliability, and enabling better adaptability of the complete machine to operations in mine; the three-stage filtration intake system improves the performance and service life of the engine.
4. The hydraulic system is applied with the double-pump constant power negative flow control and has the "auto-sensing operating mode" and the "single-pump/double-pump oil supply control mode' featuring high efficiency and enabling excellent control performance of the complete machine.
Used in many ways like digging of trenches, holes, foundation; material handing; brush cutting with hydraulic attachments; forestry work; forestry mulching; demolition, general grading/landscaping; mining; river dredging; driving piles, in conjunction with a pile driver; drilling shafts for footings and rock blasting, etc.
