|Asphalt Tank(L):||12000||Max. Spraying Width (mm):||6000|
|Total Mass(kg):||25000||Overall Dimensions (LxWxH)(mm):||10400x2500x3400|
|Spraying Precision (%）:||1||Heat Preserving Capacity (℃/h）:||≤1|

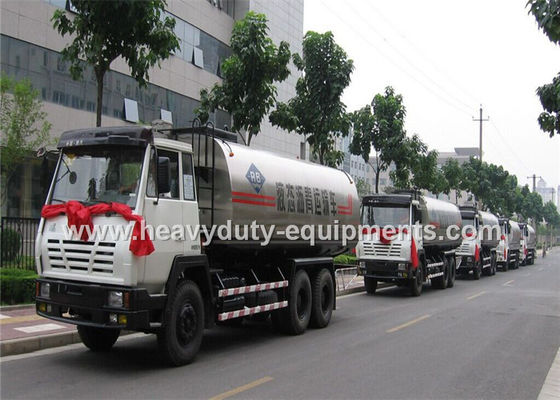

Intelligent Asphalt Distributor model enhanced with total mass 25 T and spraying adjustable
|Spraying Precision (%)||1||Max. Spraying Width (mm)||6000|
|Asphalt Heating Mode||Thermal Oil Heating 2x18x104 kcal/h||Heat Preserving Capacity (℃/h)||≤1|
|Total Mass(kg)||25000||Overall Dimensions (LxWxH)(mm)||10400x2500x3400|
Asphalt spraying operations can be conducted through the operating panel in the cab by one operator or the driver. The spraying width is adjustable. Each spraying nozzle can be controlled automatically and independently, and the maximum spraying width can reach 6 meters. Unique nozzles design can achieve triple-overlapping asphalt spray to guarantee uniformly spraying. Asphalt spraying amount can be metered and controlled, which is not affected by truck speed. Equipped with safe and reliable automatic-control Burner and hot oil heating system.
After finishing spray, the asphalt pipelines and pump are not required to clean and flush by diesel oil. It makes use of pneumatic system to purge the asphalt remained in the pipelines and pump back into the asphalt tank, and makes use of hot oil circulation to ensure pipelines and spraying nozzles not to block.
1. The control system introduces modular design, which is easy for troubleshooting and maintenance.
2. A standby control system is available and can be started immediately to ensure non-stop spraying once the main control system failed.
3. The asphalt rubber distributor is equipped with two agitators on the top of tank
4. Equipped with a flexible hand-spraying system.
5. Excellent heat-preserving performance and the average temperature drop is less than 1 ℃/h.
6. Asphalt can be filled and discharged by the pump as well as filling asphalt through the manhole.
