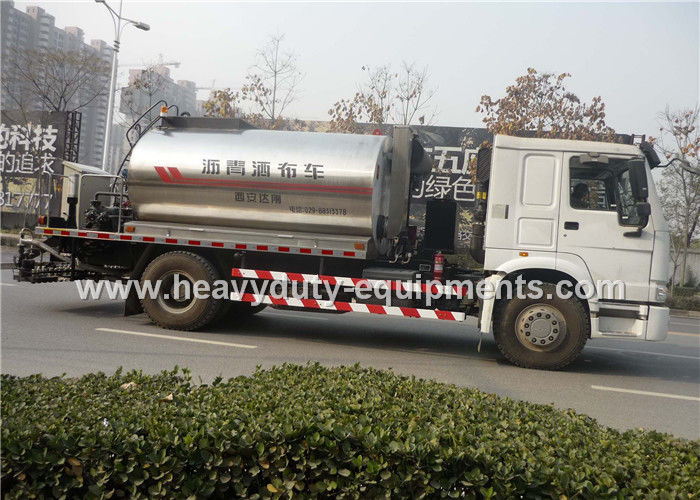

DGL5251GLS Enhanced Asphalt Distributor

China DGL5251GLS Enhanced Asphalt Distributor supplier

Large Image :  DGL5251GLS Enhanced Asphalt Distributor

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CE/BV
Model Number: DGL5251GLS

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: NUDE
Delivery Time: 35 days after payment
Supply Ability: 100 unit per month
Detailed Product Description
Asphalt Tank(L): 12000 Max. Spraying Width (mm): 6000
Total Mass(kg): 25000 Overall Dimensions (LxWxH)(mm): 10400x2500x3400
Spraying Precision (%): 1 Asphalt Heating Mode: Thermal Oil Heating

DGL5251GLS enhanced Asphalt Distributor with 0.5-5kg/m² spraying rated



Model DGL5251GLS Chassis model ZZ1257N4347C



12000 Max.Spraying Width (mm) 6000




(rubber asphalt)

Sparying Rate (kg/m²) 0.2-3
Sparying Precision (%) 1 Asphalt Heating Mode Thermal oil heating
Heat Preserving Capacity (°C/h) ≤1 Total Mass (kg) 25000
Overall Dimensions (LxWxH) (mm) 10400x2500x3400



This equipment was specially designed to accurately distributing/spraying different kinds of asphalt materials, such as hot asphalt, asphalt emulsion, modified asphalt, asphalt rubber, etc.



1.Asphalt spraying operations can be conducted through the operating panel in the cab by one operator or the driver.

2.The spraying width is adjustable. Each spraying nozzle can be controlled automatically and independently, and the maximum spraying width can reach 6 meters.

3.Unique nozzles design can achieve triple-overlapping asphalt spray to guarantee uniformly spraying.

4.Asphalt spraying amount can be metered and controlled, which is not affected by truck speed.



Use in road works, of distributing/spraying different kinds of asphalt materials.
