Product Details:
Payment & Shipping Terms:
|
| Engine Model: | 6CTA8.3-C215 | Operating Weight: | 14400 Kg |
|---|---|---|---|
| Transportation Dimension (mm): | 10470x2270x2780 | Milling Tool Quantity: | 9pcs |
| Milling Width (mm): | 1100 | Revolving Speed Of Milling Device: | 105r/min |
| High Light: | road machinery equipment,road construction safety equipment |
||

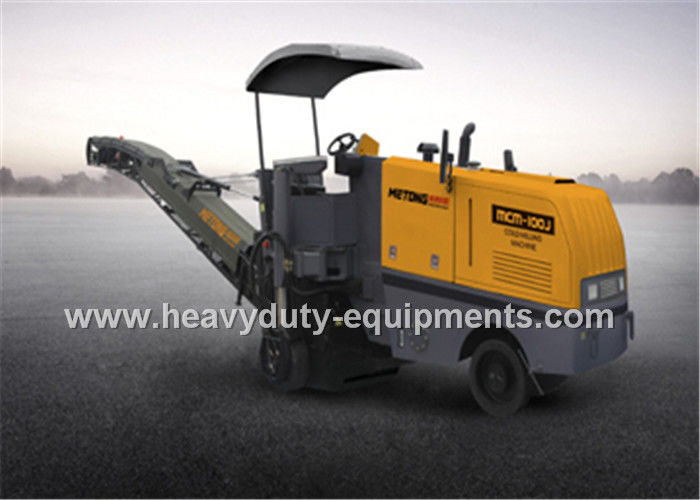

CM1001 Cold Milling machine 1100mm milling width with full hydraulic operation
| Model | CM1001 | Engine model | 6CTA8.3-C215 |
| Engine rated power / speed |
160/2200 kW/rpm |
Milling width (mm) | 1100 |
| Milling tool quantity | 9pcs | Milling blade tool blade pitch | 15m |
| Revolving speed of milling device | 105r/min | Minmal ground clearance (mm) | 140 |
| Operating speed | 0-35mm/min | Theoretical material conveying capacity | 150m³/h |
| Travel drive mode | Full hydraulic | Operating weight | 14400 kg |
| Transportation dimension (mm) | 10470x2270x2780 | ||
Description:
This road construction machinery has obvious advantages in control performance, driving performance, maintenance performance, working reliability and other aspects.
Advantage:
1.This road maintenance equipment has complete protection systems to ensure the safety of the workers and the machine unit.
2.Famous foreign brand hydraulic and control components are used in the cold milling machine to guarantee excellent working reliability.
3.Automatic control system and user-friendly operation system reduce the working intensity of the operators.
4.It is able to work flexibly and stably. Its maximum milling depth can be 300mm.
Application:
It is mainly used for the repair, maintenance or reconstruction of roads.
