Product Details:
Payment & Shipping Terms:
|
| Model: | LG938L | Engine: | Dalian Deutz 97kw |
|---|---|---|---|
| Bucket Capacity: | 1.8 M3 | Rated Load: | 3000 Kg |
| Control Valve: | 3 Valve | Operating Weight: | 10934 Kg |
| High Light: | Wheel Loader equipment,loader construction equipment |
||

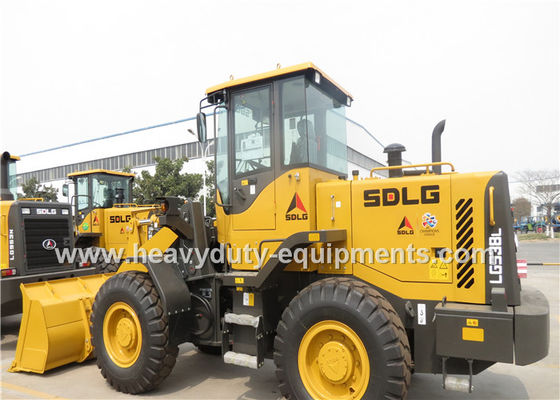

1.8m3 Bucket Front End Loader SDLG LG938L With Deutz Engine YD13 Electric Liquid
Specification:
| Item | LG938L | Engine | Deutz BF6M2012 |
| Transmission | YD13 volvo gearbox | Bucket Capacity ( m3) | 1.8 |
| Axle | SDLG A507A | Rated Load (kg) | 3000 |
| Hydraulic System | Pilot Control | Max Dumping Height (mm) | 2996 |
| Working Arm | Standard | Cycle Time (s) | ≤10.34 |
| Control Valve | 3 Valve | Min Steering Radius (mm) | 5890 |
| Brake System | Dual Brake Petal | Max Breakout Force (KN) | ≥100 |
| Cab | Standard | Dimension (L*W*H) (mm) | 7450*2520*3234 |
| Cooling/Heating System | Air Conditioner | Operating Weight (kg) | 10934 |
| Quick Coupler | Yes | Attachment | Rock bucket |
Description:
LG938L is a high-end loader for loading and unloading loose materials, with reliability and multiple purpose, and is widely used in building site, small mining, aggregate plant and municipal construction and etc.
Advantages:
1.The cooling system adopts radiator with independent cooling and double-row parallel structure, optimized terminal insulation design for heat emission compartment and hydraulic motor-driven fan.
2.The fan speed can be automatically adjusted ad per the system temperature , which provides the system with reliable energy saving property and high cooling efficiency.
3.ZF axis-fixed electric-liquid shift transmission case is used, with four front gear positions and three rear gear positions, high transmission efficiency and is also comfort to operate.
4.SDLG reinforced drive axle is configured, with reasonable front/rear-axle load distribution, large bearing capacity, high reliability and good stability for entire machine.
Application:
It’s mainly use to shovel and load the bulk materials, like soil, stone, lime, coal, etc.
