Product Details:
Payment & Shipping Terms:
|
| Model: | SDLG | Engine: | DDE |
|---|---|---|---|
| Transmission: | Fixed Shaft Gearbox | Axle: | Heavy Duty |
| Attachment: | Optional | Max Breakout Force (KN): | ≥92 |
| High Light: | heavy equipment loader,loader construction equipment |
||

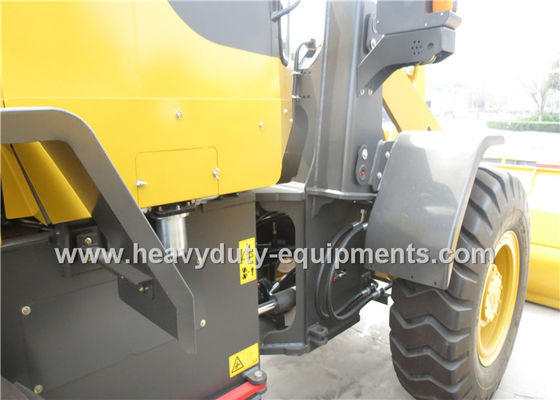

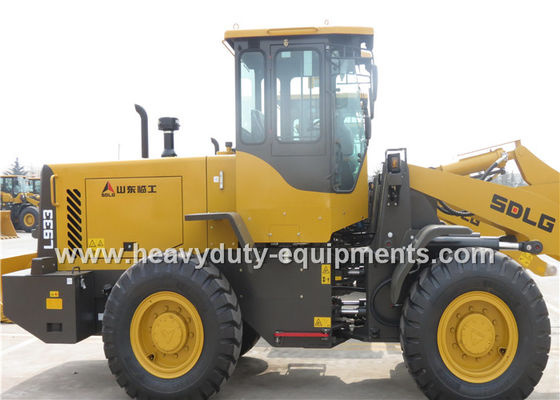

SDLG LG933L wheel loader longer arm with pallet fork or coal dozer
Specification:
| Item | LG933 L | Engine | DDE |
| Transmission | Fixed shaft gearbox | Bucket Capacity ( m3) | 1.6 |
| Axle | Heavy duty | Rated Load (kg) | 3000 |
| Hydraulic System | Pilot Control | Max Dumping Height (mm) | 2978 |
| Working Arm | Standard | Cycle Time (s) | ≤9 |
| Control Valve | 2 Valve | Min Steering Radius (mm) | --- |
| Brake System | Dual Brake Petal | Max Breakout Force (KN) | ≥92 |
| Cab | Standard | Dimension (L*W*H) (mm) | 6930*2510*3087 |
| Cooling/Heating System | Standard | Operating Weight (kg) | 10186 |
| Quick Coupler | Yes | Attachment | Optional |
Description:
LG933L is a loader for loading and unloading loose materials, with high reliability and multiple purposes, and is widely used in farms, small mine plant, timber plant and towns construction and etc.
Advantages:
1. SDLG 5T planetary transmission case is used, with two front gear positions and one rear gear position. It is light and easy to operate, with long service life; Single-stage four-element twin-turbo hydraulic torque converter is provided, with large torque ratio and high transmission efficiency; Reinforced drive axle is configured, with large bearing capacity and high reliability.
2. Load-sensing full hydraulic steering system and pilot-control working device hydraulic system are used, with high operating efficiency and are light and easy to operate; Hydraulic pipeline is double sealed, with high reliability.
3. The self-developed digitized stepping dashboard of SDLG is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.
4. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient of fullness and high reliability.
