Product Details:
Payment & Shipping Terms:
|
| Model: | CAT323D2L | Engine: | Cat C7.1 |
|---|---|---|---|
| Displacement: | 7.01L | Engine Power: | 118kw |
| Bucket Capacity: | 1.19m³ | Operating Weight: | 30305kg |
| High Light: | hydraulic shovel excavator,crawler hydraulic excavator |
||

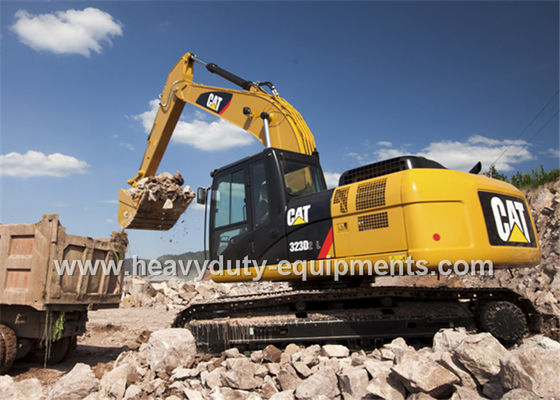

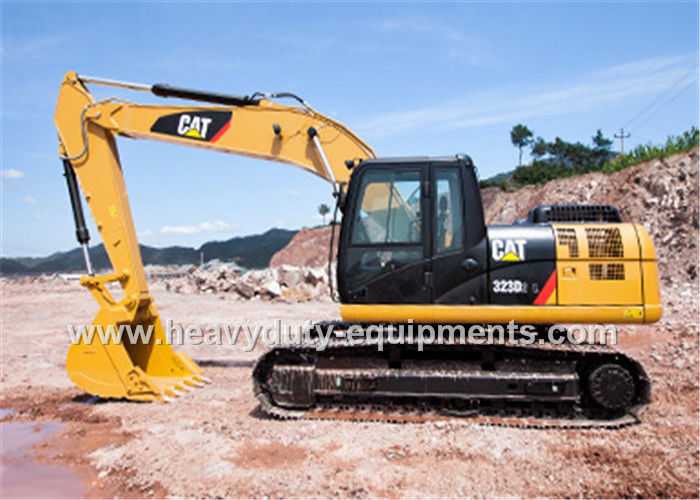

CAT hydralic excavator 323D2L, 22-23 ton operation weight, with CAT engine
Specification:
| Model | 323D2L | Engine | CAT C7.1 |
| Displacement (L) | 7.01 | Emission | EU Stage II, and China Stage II Non road equivalent emission standards. |
| Engine power (kw) | 118 |
Operating weight (kg) |
30305.0 |
|
Min ground Clearance (mm) |
450 | Track gauge (mm) | 2380 |
|
Travel hydraulic circuits (Mpa) |
35 | maximum tractive force (kN) | 205 |
| Grade ability (%) | 70/35° | rotary torque (kN•m) | 61.8 |
|
bucket arm length (mm) |
2900 | Boom length (mm) | 5700 |
|
Bucket capacity (m³) |
1.19 |
Max digging depth (mm) |
6720 |
|
Max digging height (mm) |
9490 |
Max digging radius (mm) |
9860 |
Description:
The 323D L Series 2 incorporates innovations to improve your job site efficiency through low owning and operating costs, excellent performance, and high versatility.
Advantages:
1.The Cat C7.1 engine has been designed to meet U.S. EPA Tier 2, EU Stage II, and China Stage II Nonroad equivalent emission standards.
2.Automatic engine speed control is activated during no-load or light-load conditions which reduces engine speed to minimize fuel consumption.
3.The radial seal air filter features a double-layered filter core for more efficient filtration and is located in a compartment behind the cab.
4.The C7.1 engine features an improved filtration system to ensure good reliability to fuel injection system components.
Application:
Excavator is a multipurpose machinery of earthwork construction, mainly for digging and loading.
