|Transmission:||Fixed Shaft Gearbox||Dimension (L*W*H) (mm):||7266*2510*3087|
|Cab:||FOPS And Rops And Standard||Operating Weight (kg):||10700|
Wheel Loader equipment,
loader construction equipment
1.8m3 Bucket Wheel Loader / 3000kg Loading Capacity SDLG LG936l Payloader Pilot Control
|Item||LG936 L||Engine||Weichai DEUTZ|
|Transmission||Fixed shaft gearbox||Bucket Capacity ( m3)||1.8|
|Axle||SDLG||Rated Load (kg)||2700|
|Hydraulic System||Pilot Control||Max Dumping Height (mm)||3278|
|Working Arm||Standard||Cycle Time (s)||≤9|
|Control Valve||3 Valve||Min Steering Radius (mm)||6070|
|Brake System||Dual Brake Petal||Max Breakout Force (KN)||≥92|
|Cab||FOPS and Rops and Standard||Dimension (L*W*H) (mm)||7266*2510*3087|
|Cooling/Heating System||Air Conditioner||Operating Weight (kg)||10700|

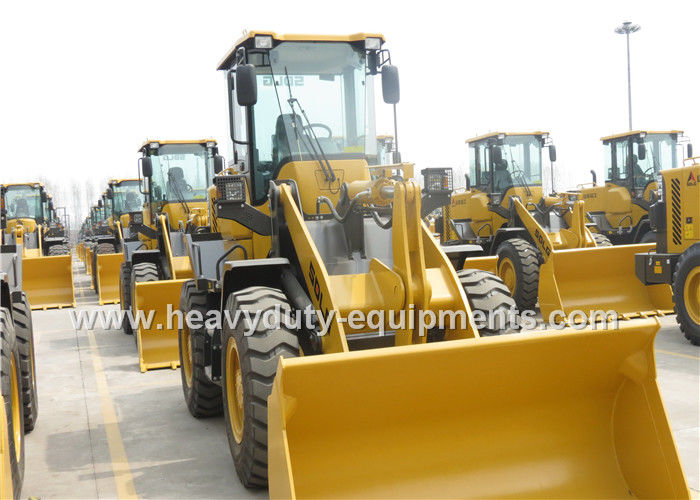

LG936L is a loader for loading and unloading loose materials, with high reliability and multiple purposes, and is widely used in farms, small mine plant, timber plant and towns construction and etc.
1. It is equipped with the Weichai DEUTZ turbocharged engine meeting the requirements of China II emission standard, with strong power and high reliability; Dachai DEUTZ Engine is alternative.
2. Load-sensing full hydraulic steering system and pilot-control working device hydraulic system are used, with high operating efficiency and are light and easy to operate; Hydraulic pipeline is double sealed, with high reliability.
3. The self-developed digitized stepping dashboard of SDLG is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.
4. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient of fullness and high reliability.
