Product Details:
Payment & Shipping Terms:
|
| Model: | SDLG LG953N | Engine: | Weichai Deutz |
|---|---|---|---|
| Rated Load (kg): | 5000 | Control Valve: | 2 Valve |
| Brake System: | Dual Brake Petal | Cooling/Heating System: | Air Conditioner |
| High Light: | Wheel Loader equipment,heavy equipment loader |
||

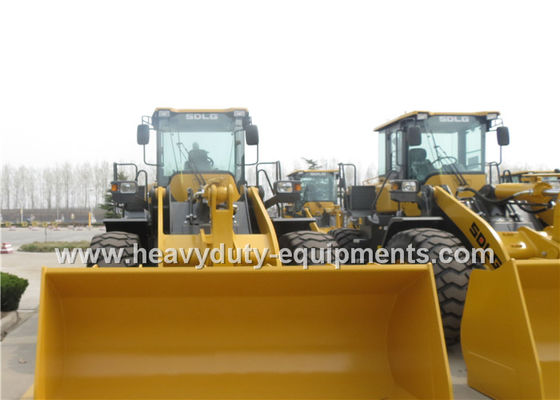

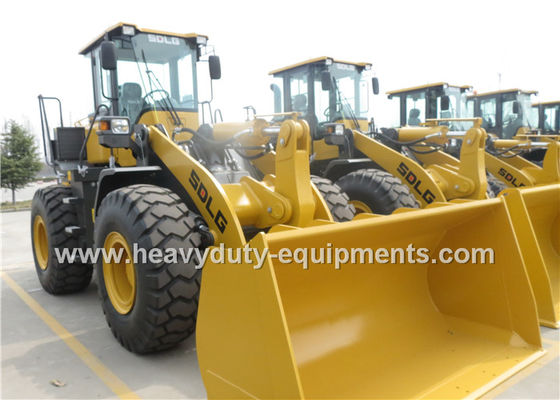

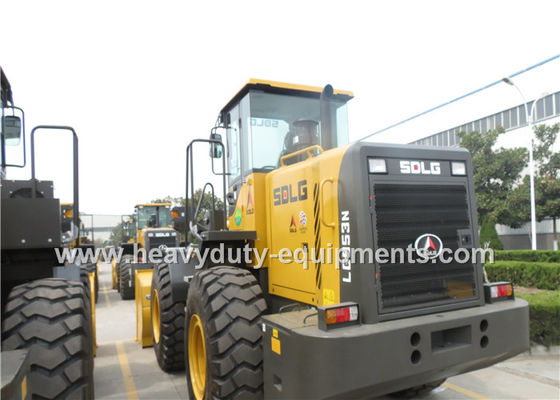

SDLG LG953N wheel loader weichai deutz engine SDLG gearbox and axle pilot control operation
Specification:
| Item | LG953N | Engine | Weichai |
| Transmission | Fixed shaft gearbox | Bucket Capacity ( m3) | 3 |
| Axle | SDLG Axle | Rated Load (kg) | 5000 |
| Hydraulic System | mechanical Control | Max Dumping Height (mm) | 3278 |
| Working Arm | Standard | Cycle Time (s) | ≤10.2 |
| Control Valve | 2 Valve | Min Steering Radius (mm) | 6070 |
| Brake System | Dual Brake Petal | Max Breakout Force (KN) | ≥92 |
| Cab | Standard | Dimension (L*W*H) (mm) | 7816*3024*3423 |
| Cooling/Heating System | Air Conditioner | Operating Weight (kg) | 16900 |
| Quick Coupler | Yes | Attachment | Optional |
Description:
LG953N, a long-wheelbase loader for loading bulk materials and hard materials, features large breakout force and tipping load enjoyed by long-wheelbase loader as well as the flexibility and small turning angle enjoyed by short-wheelbase loader, and is widely applied in areas like sand plants, ports, construction sites, mines etc.
Advantages:
1. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient
of fullness and high reliability.
2. Load-sensing full hydraulic steering system and pilot-control working device hydraulic system are used, with high operating efficiency and are light and easy to operate; Hydraulic pipeline is double sealed, with high reliability.
3. The self-developed digitized stepping dashboard of SDLG is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.
4. SDLG 5T planetary transmission case is used, with two front gear positions and one rear gear position. It is light and easy to operate, with long service life; Single-stage four-element twin-turbo hydraulic torque converter is provided, with large torque ratio and high transmission efficiency; Reinforced drive axle is configured, with large bearing capacity and high reliability.
