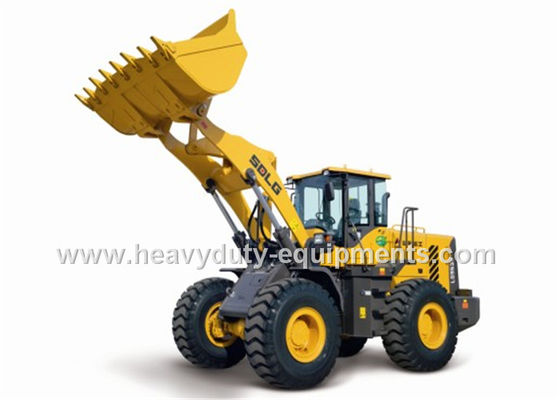

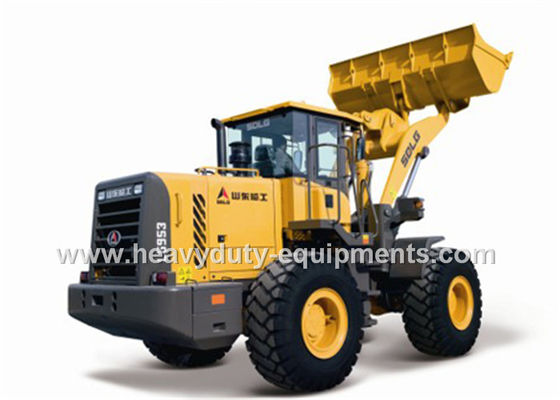

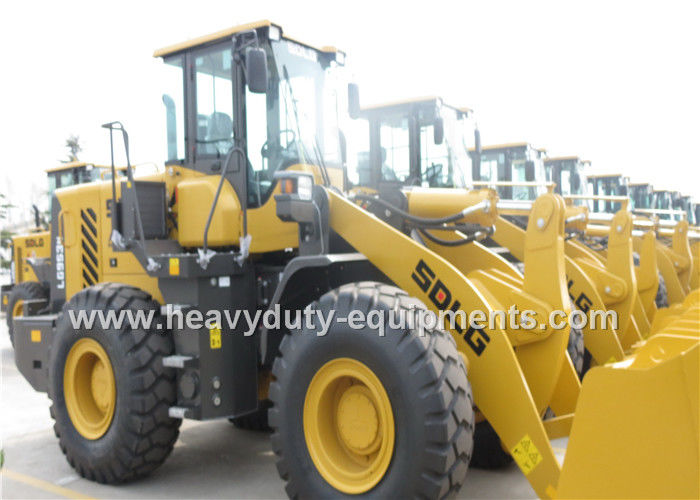

5T Loading Capcity SDLG Wheel Loader LG953N 162kw Weichai Deutz Engine 3m3 Bucket

China 5T Loading Capcity SDLG Wheel Loader LG953N 162kw Weichai Deutz Engine 3m3 Bucket supplier
5T Loading Capcity SDLG Wheel Loader LG953N 162kw Weichai Deutz Engine 3m3 Bucket supplier 5T Loading Capcity SDLG Wheel Loader LG953N 162kw Weichai Deutz Engine 3m3 Bucket supplier 5T Loading Capcity SDLG Wheel Loader LG953N 162kw Weichai Deutz Engine 3m3 Bucket supplier 5T Loading Capcity SDLG Wheel Loader LG953N 162kw Weichai Deutz Engine 3m3 Bucket supplier

Large Image :  5T Loading Capcity SDLG Wheel Loader LG953N 162kw Weichai Deutz Engine 3m3 Bucket

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC
Model Number: LG953N

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Contact Now
Detailed Product Description
Model: LG953N Engine: Weichai 162kw
Rated Load (kg): 5000 Min Steering Radius (mm): 6070
Max Breakout Force (KN): ≥185 Dimension (L*W*H) (mm): 7863*3060*3423
High Light:

Wheel Loader equipment

,

loader construction equipment

5T Loading Capcity SDLG Wheel Loader LG953N 162kw Weichai Deutz Engine 3m3 Bucket



Specification:



Item LG953N Engine Weichai
Transmission Fixed shaft gearbox Bucket Capacity ( m3) 2.8
Axle Heavy duty Rated Load (kg) 3000
Hydraulic System Pilot Control Max Dumping Height (mm) 3278
Working Arm Standard Cycle Time (s) ≤10.3
Control Valve 2 Valve Min Steering Radius (mm) 6070
Brake System Dual Brake Petal Max Breakout Force (KN) ≥185
Cab Standard Dimension (L*W*H) (mm) 7863*3060*3423
Cooling/Heating System heater system Operating Weight (kg) 16779
Quick Coupler Yes Attachment Optional



Description:

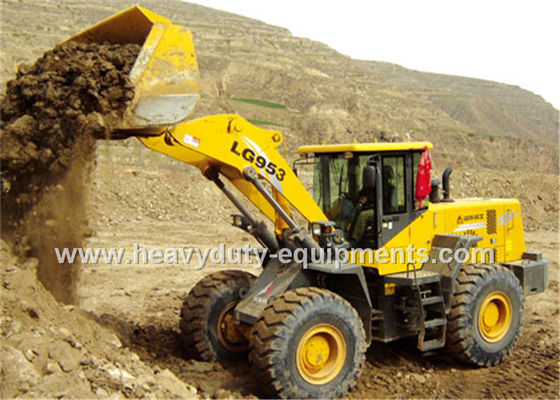

LG953N, a long-wheelbase loader for loading bulk materials and hard materials, features large breakout force and tipping load enjoyed by long-wheelbase loader as well as the flexibility and small turning angle enjoyed by short-wheelbase loader, and is widely applied in areas like sand plants, ports, construction sites, mines etc.



Advantages:



1. It is equipped with the Weichai DEUTZ turbocharged engine meeting the requirements of China II emission standard, with strong power and high reliability; Dachai DEUTZ Engine is alternative.



2. Load-sensing full hydraulic steering system and pilot-control working device hydraulic system are used, with high operating efficiency and are light and easy to operate; Hydraulic pipeline is double sealed, with high reliability.



3. The self-developed digitized stepping dashboard of SDLG is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.



4. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.



5T Loading Capcity SDLG Wheel Loader LG953N 162kw Weichai Deutz Engine 3m3 Bucket5T Loading Capcity SDLG Wheel Loader LG953N 162kw Weichai Deutz Engine 3m3 Bucket
