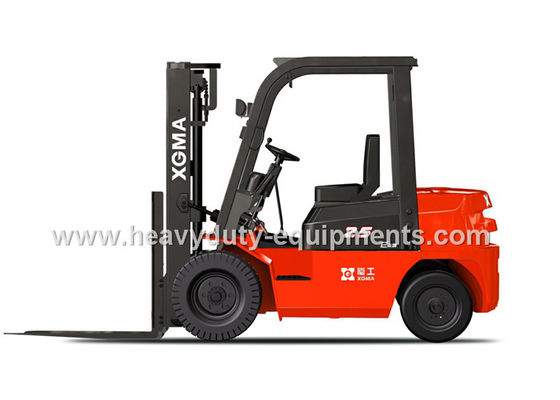

Diesel Power Type Industrial Forklift Truck Energy Saving With Safety Alarm Light

China Diesel Power Type Industrial Forklift Truck Energy Saving With Safety Alarm Light supplier
Diesel Power Type Industrial Forklift Truck Energy Saving With Safety Alarm Light supplier Diesel Power Type Industrial Forklift Truck Energy Saving With Safety Alarm Light supplier

Large Image :  Diesel Power Type Industrial Forklift Truck Energy Saving With Safety Alarm Light

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: XG525-DT5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude, but with wax sprayed.
Delivery Time: 25 working days after received payment
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Model: XG525-DT5 Rated Load: 2500 Kg
Power Type: Diesel Deadweight: 3765kg
Fork (L×W×H): 1070x122x40mm Wheel Base: 1650L
High Light:

forklift loading truck

,

forklift lift truck

Diesel Power Type Industrial Forklift Truck Energy Saving With Safety Alarm Light





Specifications:



Product Forklift Min. Turning radius (R)(mm) 2260
Model XG525-DT5 Min. ground clearance (H3)(mm) 110
Power type Diesel Max. Running speed(km/h) 20
Rated load(kg) 2500 Lifting speed (full load)(mm/s) 530
Load centers distance(mm) 500 Max. Traction force(kN) 15
Lifting height(mm) 3000 Max. Gradeability(°) 20
Free lifting height(mm) 140 Deadweight (kg) 3765
Tilt Angle of Mast(α/β) 6/12 Front wheel 7.00-12-12PR
Total length (L) 3650 Rear wheel 6.00-9-10PR
Total width (W) 1155 Wheel track (F/R) (W1/W2) (mm) 965/980
Fork (L×W×H) 1070x122x40mm Engine Model C490BPG
Load center distance (F/R)(mm) 475/485 Engine Rated power / speed (kW/r.p.m) 40/2650
Wheel base (L) 1650 Engine Max. torque / speed (N.w/r.p.m) 160/1800-2000



Description :



The physical design is much lighter but with higher strength less complications in transportation either alone or by other trucks. If being equipped with professional gantry, our forklift can be used for loading, unloading and stock filing of containers as well as other packages.



Application:



This kind of forklift used for loading, unloading and stock filing of containers as well as other packages.



Advantage :



1. Developed based on international and domestically-manufactured instrument panel including safety alarm light; all control pedals and levers have human-interface engineering requirements.



2. Well defined and high powered engines with pump diesel engine with direct injection and imported Japanese ISUZU C240engine.



3. The performance of the engine are tremendous such as easy start, low fuel consumption, horsepower, higher power reserve coefficient and these engine built-up is in strict conformity with national and international emission standards for new models/ similar models.



4. A high quality and high stiffness integral GRP hood. Has greater performance in sound proofing and effective heat insulation effects.
