Product Details:
Payment & Shipping Terms:
|
Engine: | Shangchai | Model: | SC11CB220G2B1 |
---|---|---|---|
Bucket Capacity ( M3): | 2.2-2.5 | Cycle Time (s): | ≤11.0 |
Max Breakout Force (KN): | 170 | Rated Speed (rpm): | 2200 |
High Light: | Wheel Loader equipment,loader construction equipment |

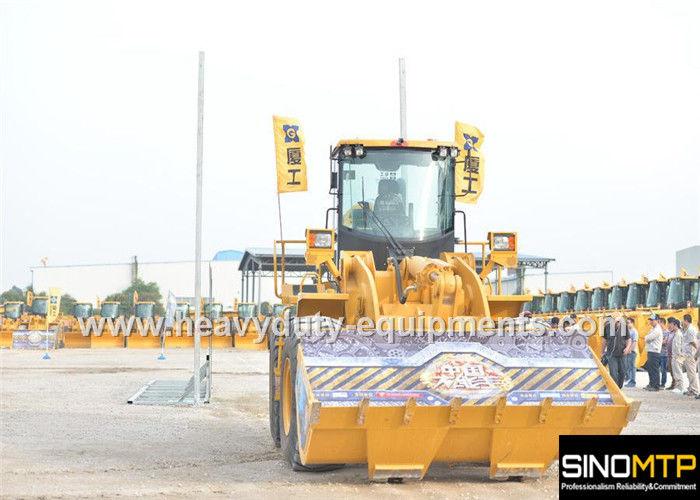

XGMA XG955H wheel loader equipped with rock bucket 2.2 - 2.5 m3
Item | XG955H | Engine | Shangchai |
Model | SC11CB220G2B1 | Bucket Capacity ( m3) | 2.2-2.5 |
Rated power | 162 | Rated Load (kg) | 5000 |
Rated speed (rpm) | 2200 | Dumping reach (mm) | ≥1185 |
Working Arm | Standard | Cycle Time (s) | ≤11.0 |
Lifting time of lift arm (s) | ≤6.0 | Min truning Radius (mm) | 6650 |
Max. gradeability (°) | 28 | Max Breakout Force (KN) | 170 |
Operating Weight (kg) | 17200 | Dimension (L*W*H) (mm) | 7710*2880*3450 |
Quick Coupler | no | Attachment | Optional |
Description:
High Efficiency and Energy Conservation:Patented dual-pump confluence and diffluence technology; Standard models provide the highest dumping height;Small turning radius; Biggest traction under combinatory operating conditions; Green, turbocharged, inter cooled engine; Patented proportional differential
Advantage:
1.The turbocharged, air-air inter cooled engine technology increases power output by 30%, reduces fuel consumption by 10%, and improves reliability by 30%.
2.The proprietary optimization technology offers a small turning radius, strong maneuverability, and high flexibility.
3.XGMA’s loaders have the biggest traction under combinatory operating conditions in the industry, offering higher productivity and energy efficiency.
4.XGMA’s hydraulic system featuring patented dual-pump confluence and difference and equivalent unloading technologies giving priority to steering is efficient and energy-saving.
