Product Details:
Payment & Shipping Terms:
|
| Engine: | Shangchai SC11CB240.1G2B1 | Bucket Capacity ( M3): | 3.5-4.5 |
|---|---|---|---|
| Rated Load (kg): | 6000 | Dump Reach (mm): | ≥1330 |
| Dumping Clearance At Full Lift (mm): | ≥3340 | Max. Gradeability (°): | 28-30 |
| High Light: | heavy equipment loader,loader construction equipment |
||

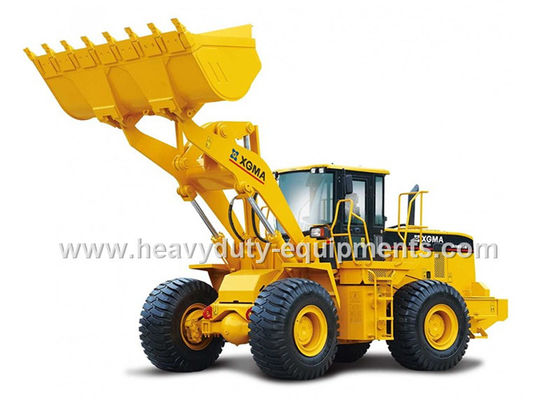

XGMA 6tons wheel loader XG962H with shangchai engine , 4.5m3 bucket, ZF WG200 gearbox
| Item | XG962H | Engine |
Shangchai SC11CB240.1G2B1 |
| Max. Torque(N.m) | ≥1000 | Bucket Capacity ( m3) | 3.5-4.5 |
| Max. Gradeability (°) | 28-30 | Rated Load (kg) | 6000 |
| Dump reach (mm) | ≥1330 | Dumping clearance at full lift (mm) | ≥3340 |
| Working Arm | Standard | Cycle Time (s) | ≤10.5 |
| Lifting time of lift arm (s) | ≤6.5 | Min Turning Radius (mm) | 7470 |
|
Discharge angle (°) |
≤45 | Max Breakout Force (KN) | 175 |
| Cab | Standard | Dimension (L*W*H) (mm) | 8820*3145*3465 |
| Cooling/Heating System | Air Conditioner | Operating Weight (kg) | 4850 |
| Quick Coupler | No | Attachment | Optional |
Description:
The large-opening engine hood is more convenient for the engine service and maintenance. And several kinds of working devices and buckets are available to meet the requirements of different users.
Advantage:
1. ZF WG200 electro hydraulic control transmission features advanced technology; high reliability, and high transmission efficiency.
2. Soundproof, heat-insulated, and damping cab can bring wide driving space and good field of vision with safe glass passing the 3C certification, and the flame-resistant trim.
3. Z-type connecting rod features large breakout force and high working efficiency.
4. Several kinds of working devices and buckets are available to meet the requirements of different users, e.g. Rock bucket, enlarged bucket, flat sand bucket, log grapple, grass grapple, coupling fork.
Application:
Wheel loader is a multipurpose machinery of earthwork construction, it’s mainly used to shovel and load coal in coal project.
