Product Details:
Payment & Shipping Terms:
|
| Engine: | Shangchai SC11CB240.1G2B1 | Bucket Capacity ( M3): | 3.5-4.5 |
|---|---|---|---|
| Rated Load (kg): | 6000 | Rated Power: | 175 |
| Working Arm: | Standard | Operating Weight (kg): | 4850 |
| High Light: | Wheel Loader equipment,loader construction equipment |
||

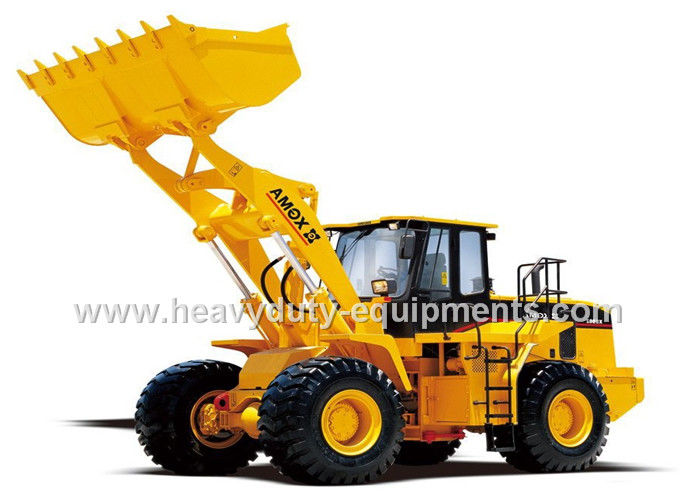

XGMA wheel loader XG962H with 4.5t bucket capacity, shangchai engine , ZF transmission
| Item | XG962H | Engine |
Shangchai SC11CB240.1G2B1 |
| Rated power | 175 | Bucket Capacity ( m3) | 3.5-4.5 |
| Max. Gradeability (°) | 28-30 | Rated Load (kg) | 6000 |
| Dump reach (mm) | ≥1330 | Dumping clearance at full lift (mm) | ≥3340 |
| Working Arm | Standard | Cycle Time (s) | ≤10.5 |
| Lifting time of lift arm (s) | ≤6.5 | Min Turning Radius (mm) | 7470 |
|
Discharge angle (°) |
≤45 | Max Breakout Force (KN) | 175 |
| Cab | Standard | Dimension (L*W*H) (mm) | 8830*3140*3460 |
| Cooling/Heating System | Air Conditioner | Operating Weight (kg) | 4850 |
| Quick Coupler | No | Attachment | Optional |
Description:
The pilot control can bring convenient, labor-saving, and comfortable operations. And the hydraulic technology with dual pump converging and shunting and preferential steering can bring high energy-saving performance.
Advantage:
1. ZF WG200 electro hydraulic control transmission features advanced technology; high reliability, and high transmission efficiency.
2. Soundproof, heat-insulated, and damping cab can bring wide driving space and good field of vision with safe glass passing the 3C certification, and the flame-resistant trim.
3. Z-type connecting rod features large breakout force and high working efficiency.
4. Several kinds of working devices and buckets are available to meet the requirements of different users, e.g. Rock bucket, enlarged bucket, flat sand bucket, log grapple, grass grapple, coupling fork.
Application:
Wheel loader is mainly used in construction project and road construction for shoveling and loading.
