Product Details:
Payment & Shipping Terms:
|
| Model: | XG560 | Rated Load: | 6000 Kg |
|---|---|---|---|
| Gradeability: | 20% | Deadweight: | 8600kg |
| Overall Dimensions: | 4620x1990x2495mm | Load Center Distance: | 600mm |
| High Light: | forklift pallet truck,forklift lift truck |
||

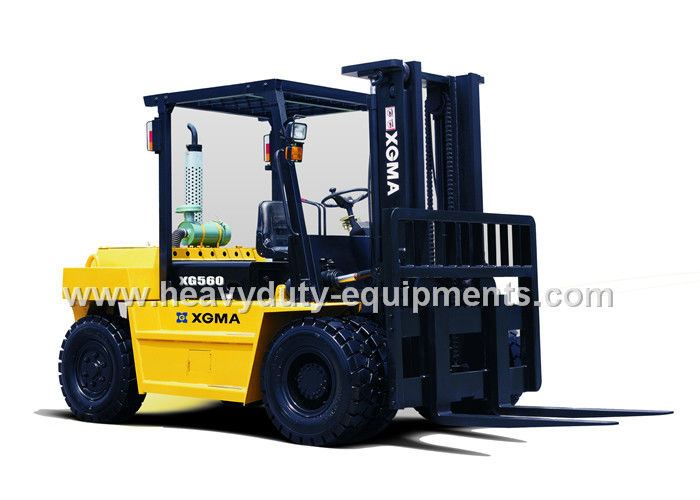

Air Over Oil Brakes Industrial Forklift Truck 2230mm Wheelbase 6000Kg Rated Loading
Specifications:
| Model | XG560 | Height of Overhead Guard(mm) | 2230 |
| Rated lifting capacity (kg) | 6000 | Maximum Lifting Height(mm) | 3000 |
| Deadweight (kg) | 8600 | Free Lifting Height(mm) | 160 |
| Turning radius (mm) | 1200x150x60 | Minimum Ground Clearance(mm) | 160 |
| L x W x H(mm) | 3400 | Track (Front/rear)(mm) | 1485/1500 |
| Overall Dimensions (LxBxH) (mm) | 4620x1990x2495 | Front tyre | 4x8.25-15-14PR |
| Maximum Travel Speed (km/h) | 26 | Rear tyre | 2x8.25-15-14PR |
| Gradeability (%) | 20 | Engine Model | LR4108G8 |
| Load Center Distance(mm) | 600 | Engine Rated Power/Speed( kw/r • p • m) | 64/2400 |
| Tilt Angle of Mast (F/B) (°) | 6°/12° | Engine Max. Torque/Speed (N • m/r • p • m) | 292/1500-1600 |
| Wheelbase (mm) | 2200 |
Fuel Consumption Rate(g/kw.h)
|
242 |
Description:
The cab is opened on all sides for ventilation and for operator's wider visual conveniences. Our forklift truck is widely applied in logistics operation sites like port, wharf, industrial and mining enterprises, station and warehouse, construction site, and log yard.
Application:
our forklift truck is widely used in logistics operation sites like port, wharf, industrial and mining enterprises, station and warehouse, construction site, log yard and much more.
Advantage:
1. Brake system: air-over-oil brakes of good reliability with brake master cylinder and brake light.
2. Selected from the best qualified and reliable hydraulic component manufacturer that vastly implements advanced technology.
3. The good performance of hydraulic system by sealing fuel tank structure, multi-function valve with forward self-locking and has a lower torque steering gear.
4. Engine hood: A high quality and high stiffness integral GRP hood. Has greater performance in sound proofing and effective heat insulation effects.
