Product Details:
Payment & Shipping Terms:
|
| Model: | XG580 | Rated Lifting Capacity: | 8000kg |
|---|---|---|---|
| Maximum Travel Speed: | 26km/h | Minimum Turning Radius: | 4200mm |
| Overall Dimensions (LxBxH): | 5257x2066x2715mm | Maximum Lifting Height: | 3000mm |
| High Light: | forklift pallet truck,forklift lift truck |
||

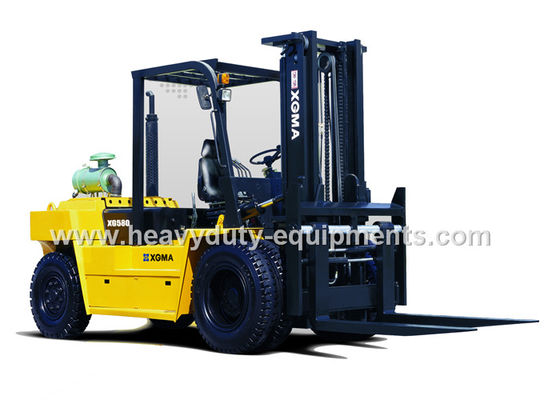

8000Kg Forklift Loading Truck Hydraulic System Control With Solid Steel Gantry Fork
Specification:
| Model | XG580 | Distance from the center line of the Front axle to the fork surface (mm) | 747 |
| Rated lifting capacity (kg) | 8000 | Maximum Lifting Height(mm) | 3000 |
| Deadweight (kg) | 10800 | Free Lifting Height(mm) | 160 |
| Minimum turning radius (mm) | 4200 | Minimum Ground Clearance(mm) | 180 |
| Fork: L x W x H(mm) | 1600x180x80 | Track (Front/rear)(mm) | 1494/1600 |
| Overall Dimensions (LxBxH) (mm) | 5257x2066x2715 | Front tyre | 4x8.25-20-14PR |
| Maximum Travel Speed (km/h) | 26 | Rear tyre | 2x9.00-16-14PR |
| Gradeability (%) | 20 | Engine Model | 6BG1 |
| Load Center Distance(mm) | 600 | Engine Rated Power/Speed( kw/r • p • m) | 84.6/2200 |
| Tilt Angle of Mast (F/B) (°) | 6°/12° | Engine Max. Torque/Speed (N • m/r • p • m) | 410.9/1400-1600 |
| Wheelbase (mm) | 2700 |
Description:
1. Heavy duty hydraulic system controls the fork effectively and accurately.
2. High strength solid steel gantry fork.
3. An ideal operation friendly in the engineering and industrial sectors.
Application:
Our forklift truck is widely used in logistics operation sites like port, wharf, industrial and mining enterprises, station and warehouse, construction site, log yard and much more.
Advantage:
1. High strength solid steel Gantry fork: Excellent capacity of resisting impact and is used in heavy duty operations.
2. The silencer is accurately positioned, and it can reduce the engine's back pressure and maximizes the heat dissipation of the engine's gearbox and torque converter, and at the same time, maintaining heat balance and improve the working efficiency.
3. The operator's seat is rotational and adjustable both vertically or horizontally.
4. The forklift truck components are available on the market for servicing and for maintenance.
