Product Details:
Payment & Shipping Terms:
|
| Model: | CPCD100B | Rated Lifting Capacity: | 10000kg |
|---|---|---|---|
| Maximum Travel Speed: | 26km/h | Minimum Turning Radius: | 4350mm |
| Overall Dimensions (LxBxH): | 6090x2280x3050mm | Fully-loaded Lifting Speed: | 220mm/s |
| High Light: | forklift pallet truck,forklift lift truck |
||

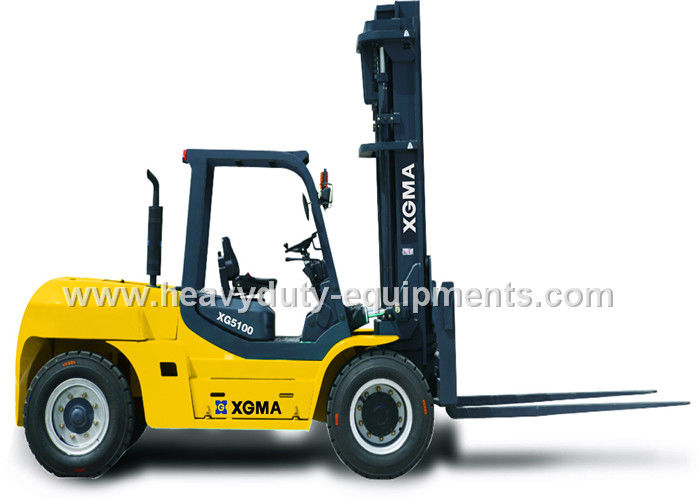

Counter Balance Forklift 10 Ton Capacity Steering Axle Simplicity Maintenance
Specification:
| Product | CPCD100B | Max. Lifting Height(mm) | 3000 |
| Rated Lifting Capacity(kg) | 10000 | Free Lifting Height(mm) | 200 |
| Deadweight(kg) | 15000 | Minimum Ground Clearance(mm) | 235 |
| Fork: L x W x H(mm) | 1600x180x80 | Track (Front/rear)(mm) | 1680/1800 |
| Minimum Turning Radius(mm) | 4350 | Wheelbase(mm) | 2890 |
| Overall Dimensions(LxBxH)(mm) | 6090x2280x3050 | Front tyre | 4X10.00-20-16PR |
| Maximum Travel Speed(km/h) | 26 | Rear tyre | 2X10.00-20- 16PR |
| Gradeability (full load/empty)(%) | 15/20 | Engine Model | LR6108G59 |
| Load Center Distance(mm) | 600 | Engine Rated Power/ Speed (kw/r • p • m)) | 92/2200 |
| Tilt Angle of Mast (F/B)( °) | 6° /12° |
Engine Max. Torque/ Speed (N • m/r • p • m) |
460/1400-1600
|
| Fully-loaded Lifting Speed (mm/s) | 220 | Engine Fuel Consumption Rate (g/kw.h) | 242 |
Description:
Our 10T-12T forklift truck has Heavy duty torque converter installed for smooth rotation of power within internal combustion engine, to rotating-driven load. Equipped with Automatic transmission technology which ensure automatic change in gear ratio during operation, freeing operator from sifting gears manually.
Application:
our forklift truck is widely used in logistics operation sites like port, wharf, industrial and mining enterprises, station and warehouse, construction site, log yard and much more.
Advantage:
1. These forklifts have unlimited power, larger torque, simple to operate and luxurious operation environment.
2. They have the best performance while compared to other similar products on the market locally.
3. Steering axle has less turning hydraulic steering gear with transverse cylinder ensuring steering flexibility, maintenance simplicity and highly reliable.
