12 Ton Forklift Loading Truck 2890mm Wheelbase For Short Distance Transportation

China 12 Ton Forklift Loading Truck 2890mm Wheelbase For Short Distance Transportation supplier

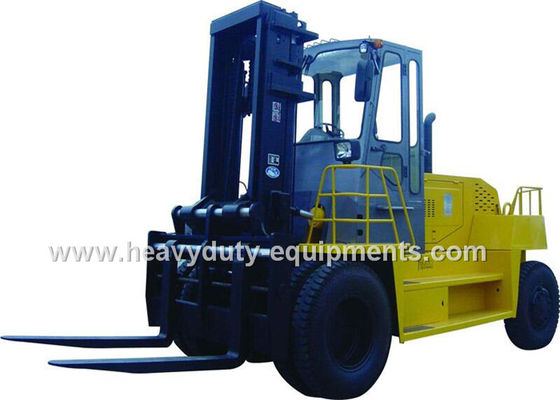

Large Image :  12 Ton Forklift Loading Truck 2890mm Wheelbase For Short Distance Transportation

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: CPCD120B-J

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude, but with wax sprayed.
Delivery Time: 25 working days after received payment
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Model: CPCD120B-J Rated Lifting Capacity: 12000kg
Load Center Distance: 600mm Max. Lifting Height: 3000mm
Minimum Ground Clearance: 235mm Engine Rated Power/ Speed: 84.6/2200 Kw/r • P • M
High Light:

forklift pallet truck

,

forklift lift truck

12 Ton Forklift Loading Truck 2890mm Wheelbase For Short Distance Transportation





Specification:



Product CPCD120B-J Max. Lifting Height(mm) 3000
Rated Lifting Capacity(kg) 12000 Free Lifting Height(mm) 200
Deadweight(kg) 15000 Minimum Ground Clearance(mm) 235
Fork: L x W x H(mm) 1600x180x80 Track (Front/rear)(mm) 1680/1800
Minimum Turning Radius(mm) 4350 Wheelbase(mm) 2890
Overall Dimensions(LxBxH)(mm) 6090x2280x3050 Front tyre 4X10.00-20-16PR
Maximum Travel Speed(km/h) 26 Rear tyre 2X10.00-20- 16PR
Gradeability (full load/empty)(%) 15/18 Engine Model 6BG1 Isuzu 6BG1
Load Center Distance(mm) 600 Engine Rated Power/ Speed (kw/r • p • m) 84.6/2200
Tilt Angle of Mast (F/B)( °) 6° /12°

Engine

Max. Torque/ Speed (N • m/r • p • m)

410.9/1400-1600



Fully-loaded Lifting Speed (mm/s) 220 Engine Fuel Consumption Rate (g/kw.h) 230



Description:



Our 10T-12T forklift truck is widely applied in logistic operation sites like port, wharf, industrial and mining enterprises, store yards and warehouse, construction site, and logging. Fitted with handy steer with maximum freedom, provides steering conveniences. It is exclusively designed also for bad environment, conditions and heavy tasks.



Application:



Our forklift is widely used in short distance transportation as well as loading, unloading, and piling goods at warehouses and industrial and mining companies, port, wharf, station, warehouse.



Advantage:



1. Steering axle has less turning hydraulic steering gear with transverse cylinder ensuring steering flexibility, maintenance simplicity and highly reliable.



2. High strength solid steel gantry fork: Excellent capacity of resisting impact and is used in heavy duty operations.



3. These forklifts have unlimited power, larger torque, simple to operate and luxurious operation environment, and safes a lot more fuel.



4. Our forklift have the best performance while compared to other similar products on the market locally.

12 Ton Forklift Loading Truck 2890mm Wheelbase For Short Distance Transportation
