16 Tons Road Construction Safety Equipment Front Blade Motor Grader With 1626mm Cutter

China 16 Tons Road Construction Safety Equipment Front Blade Motor Grader With 1626mm Cutter supplier

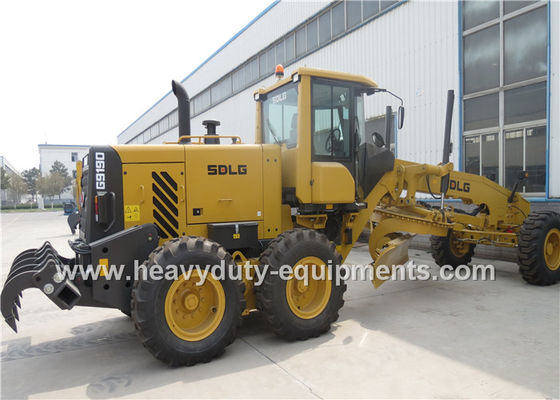

Large Image :  16 Tons Road Construction Safety Equipment Front Blade Motor Grader With 1626mm Cutter

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC
Model Number: G9190

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Detailed Product Description
Model: G9190 Engine: DDE BF6M1013FC
Dimension: 8975x2710x3240 Cutter: 1626mm
Transmission Type: ZF6WG200 Gearbox Drive Axle: Meichi Axle

16 Tons Road Construction Safety Equipment Front Blade Motor Grader With 1626mm Cutter





Specification:



Model G9190 Brake system Chain transmission drum brake
Engine DDE BF6M1013FC Driving type Rear axle drive
Rated Power 148kW Dimension (LxWxH)(mm) 8975x2710x3240
Transmission type ZF6WG200 Gearbox Standard operating weight (kg) 15800
Drive Axle Meichi Axle Cutter 1626mm
Hydraulic system Mechanical operation Front Blade Optional



Description:



G9190 is a product of high speed, high efficiency, high accuracy and multiple purposes developed by SDLG on the basis of advanced technology of VOLVO, can be used for ground leveling and grooving, scraping slope, bulldozing, ploughing snow, loosening, compacting, material arrangement and mixing works, and is widely applied in construction operating condition of road, airport, defense engineering, mine construction, road construction, water conservancy construction and farmland improvement and so on.



Advantage:



1. Electrically-controlled variable power DEUTZ engine is used and has three power curves in perfect matching with Advance transmission case, which makes it available to select applicable power mode based on load to realize an optimum performance and fuel efficiency and high efficiency and energy saving function.

2. It is equipped with dual-cylinder driven tray-type working device of advanced VOLVO technology and domestic industrial originated dual rotatory cylinder and rotatory valve structure which is of large drive power and can rotate with load.

3. Electrical system of the entire machine has centralized control, three-stage alarm electronic monitoring system, digitalized stepping instrument display, high man-machine interaction and is convenient for detection and maintenance; the entire machine control has automatic cruise function, which can get engine operated in setting speed and thus reduces the labor strength of operation person.

4. It is optional to mount auxiliary appliances such as front blade, middle rock ripper and rear rock ripper to meet various demand of customer.

16 Tons Road Construction Safety Equipment Front Blade Motor Grader With 1626mm Cutter
