Product Details:
Payment & Shipping Terms:
|
| Model: | CPCD160 | Rated Lifting Capacity: | 16000kg |
|---|---|---|---|
| Minimum Turning Radius: | 5800mm | Fork (L X W X H): | 1800x180x90mm |
| Load Center Distance: | 600mm | Minimum Ground Clearance: | 250mm |
| High Light: | forklift pallet truck,forklift lift truck |
||

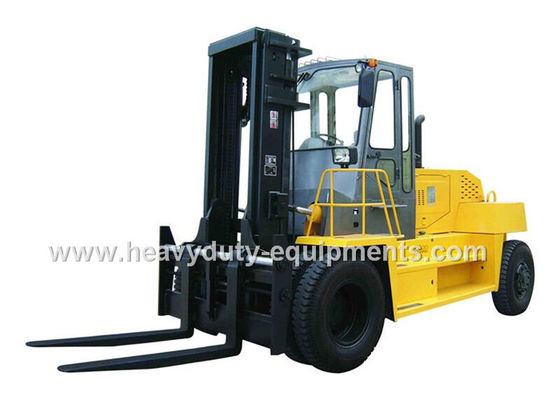

Construction Sites Industrial Forklift Truck 16 ton 5800mm Turning Radius
Specification:
| Product | CPCD160 | Max. Lifting Height(mm) | 3500 |
| Rated Lifting Capacity(kg) | 16000 | Free Lifting Height(mm) | 180 |
| Deadweight(kg) | 20000 | Minimum Ground Clearance(mm) | 250 |
| Fork: L x W x H(mm) | 1800x180x90 | Track (Front/rear)(mm) | 2060/2330 |
| Minimum Turning Radius(mm) | 5800 | Wheelbase(mm) | 3800 |
| Overall Dimensions(LxBxH)(mm) | 7360x2750x3600 | Front tyre | 4-12.00-24/18PR |
| Travel Speed: Forward 1-2/Backward (km/h) | 10-25/12.5 | Rear tyre | 2-12.00-20/16PR |
| Gradeability (%) | 20 | Engine Model | D6114ZG9B |
| Load Center Distance(mm) | 600 | Engine Rated Power/ Speed (kw/r • p • m)) | 125/2200 |
| Tilt Angle of Mast (F/B)( °) | 6° /12° |
Engine Max. Torque Speed (N • m/r • p • m) |
650/1400
|
| Fully-loaded Lifting Speed (mm/s) | 300 | Engine Fuel Consumption Rate (g/kw.h) | 228 |
Description:
An ideal operation friendly in the engineering and industrial sectors. Adopt loader components for facilitating the maintenance.
Application:
Our forklift truck is especially suitable for places with bad environment and high-intensity work. Currently it is widely used in the port, wharf, industrial and mining enterprises, stations, warehouses, construction sites, and log yards.
Advantage:
1. High-position installed silencer can reduce the engine's back pressure and accelerate the heat dissipation of the engine's gearbox and torque converter.
2. The driver's seat can be adjusted in all directions to maximize the driver's comfort.
3. Some chassis components of our forklift truck are compatible with SINOMTP wheel loader. Besides, they can be easily purchased, making the maintenance convenient.
