LCD Instrument Forklift Lift Truck Battery Powered Steering Axle 2500Kg Loading Capacity

China LCD Instrument Forklift Lift Truck Battery Powered Steering Axle 2500Kg Loading Capacity supplier

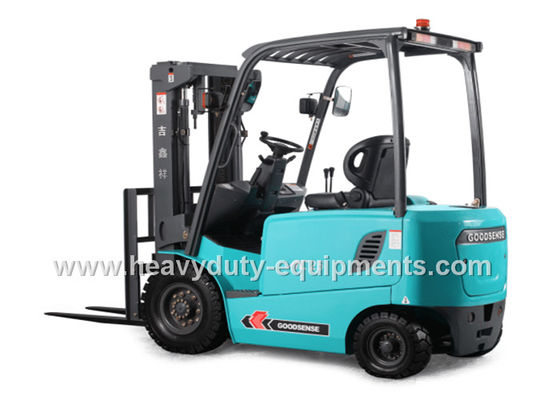

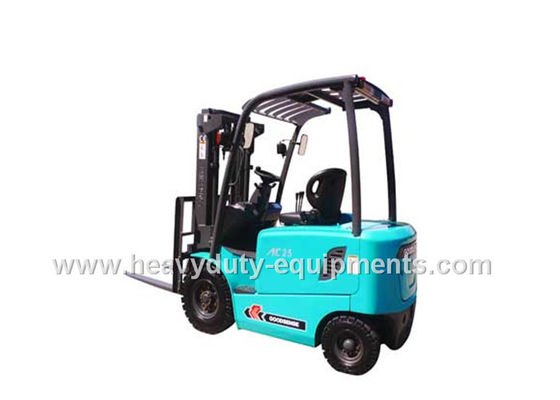

Large Image :  LCD Instrument Forklift Lift Truck Battery Powered Steering Axle 2500Kg Loading Capacity

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV/CE
Model Number: SINOMTP-FB25

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude, but with wax sprayed.
Delivery Time: 25 working days after received payment
Supply Ability: 500 units per month
Detailed Product Description
Model: SINOMTP-FB25 Power Source: Battery
Rated Load Capacity: 2500kg Load Centre: 500mm
Fork Carriage Tilt(F/R): 6°/12° Gradeability(Laden): 15%

LCD Instrument Forklift Lift Truck Battery Powered Steering Axle 2500Kg Loading Capacity





Specification:



Product model SINOMTP-FB25 Overhead Guard Height(mm) 2240
Power source Battery Wheelbase(mm) 1510
Rated load capacity(kg) 2500 Overall length(with forks)(mm) 3430
Load centre(mm) 500 Gradeability(Laden)(%) 15
Lift height(mm) 3000 Front Tire 7.00-12-12PR
Fork size (L×W×T)(mm) 1070x120x40 Rear Tire 18x7-8-14PR
Overall Length(Length to fork face)(mm) 2360 Backrest height(from upper fork face)(mm) 994
Overall Width(mm) 1090 Free lift(mm) 125
Mast Lowered Height(mm) 1160 Drive motor(kw) 11.1/8
Mast Extended Height(mm) 4020 Lift motor(kw) 12/15
Fork carriage tilt(F/R)( °) 6°/12°



Description:



Our production range for internal-combustion counter-balance forklift trucks is from 1T-33T. Economical engines for option both domestic and imported, simple and neat rows of piping design properly layout the hard soft pipes which greatly reduced the pipeline pressure.



Application:



Currently our forklift truck is widely used in logistics operation sites like port, wharf, industrial and mining enterprises, station and warehouse, construction site, log yard and much more.



Advantage:



1. High-strength overhead guard

2. Super low non-slip pedal

3. Waterproof, dustproof and shockproof of LCD instrument

4. Motor: side-mounted pump motor makes easier maintenance

LCD Instrument Forklift Lift Truck Battery Powered Steering Axle 2500Kg Loading Capacity
