22Kw Motor Drive Industrial Forklift Truck 28x9-15-12PR Tires 1070x125x50 mm

China 22Kw Motor Drive Industrial Forklift Truck 28x9-15-12PR Tires 1070x125x50 mm supplier

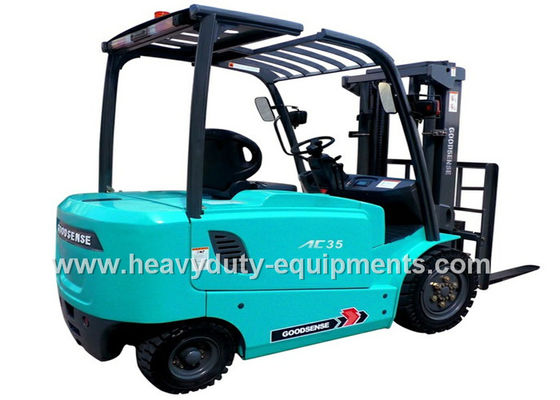

Large Image :  22Kw Motor Drive Industrial Forklift Truck 28x9-15-12PR Tires 1070x125x50 mm

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV/CE
Model Number: SINOMTP-FB35

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude, but with wax sprayed.
Delivery Time: 25 working days after received payment
Supply Ability: 500 units per month
Detailed Product Description
Model: SINOMTP-FB35 Power Source: Battery
Rated Load Capacity: 3500kg Load Centre: 500mm
Fork Size (L×W×T): 1070x125x50mm Drive Motor: 13.5/22kw

22Kw Motor Drive Industrial Forklift Truck 28x9-15-12PR Tires 1070x125x50 mm



Specification:



Product model SINOMTP-FB35 Overhead Guard Height(mm) 2250
Power source Battery Wheelbase(mm) 1700
Rated load capacity(kg) 3500 Overall length(with forks)(mm) 3630
Load centre(mm) 500 Gradeability(Laden)(%) 15
Lift height(mm) 3000 Front Tire 28x9-15-12PR
Fork size (L×W×T)(mm) 1070x125x50 Rear Tire 18x7-8 (solid tire)
Overall Length(Length to fork face)(mm) 2560 Backrest height(from upper fork face)(mm) 930
Overall Width(mm) 1230 Free lift (mm) 130
Mast Lowered Height(mm) 2120 Drive motor(kw) 16.6/9
Mast Extended Height(mm) 4160 Lift motor(kw) 13.5/22
Fork carriage tilt(F/R)( °) 6°/12°



Description:



Has heavy duty torque converter installed for smooth rotation of power within the internal combustion engine, to rotating driven load. Torque converter supersedes the mechanical clutch, effectively allowing the load to be configured from the power source.



Application:



Currently our forklift is widely used in logistics operation sites like port, wharf, industrial and mining enterprises, station and warehouse, construction site, log yard and much more.



Advantage:



1. Side cover can be quickly re moved without any tools. Hook cover open angle ≥90°,makes a convenient battery maintenance.

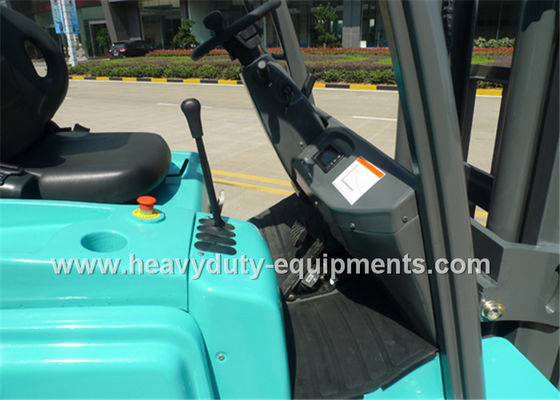

2. Humanized right-side hydraulic operation handle and emergency power-off button.

3. Full-view mast and fork carriage ensure operator’s excellent operation vision.

4. Flexible internal transmission flow providing efficiency, reliable, stable and entire machine operation conveniences.
