Product Details:
Payment & Shipping Terms:
|
| Model: | SINOMTP-FB40 | Power Source: | Battery |
|---|---|---|---|
| Rated Load Capacity: | 4000kg | Load Centre: | 500mm |
| Fork Size (L×W×T): | 1070x150x50mm | Drive Motor: | 2x11kw |
| High Light: | forklift loading truck,forklift lift truck |
||

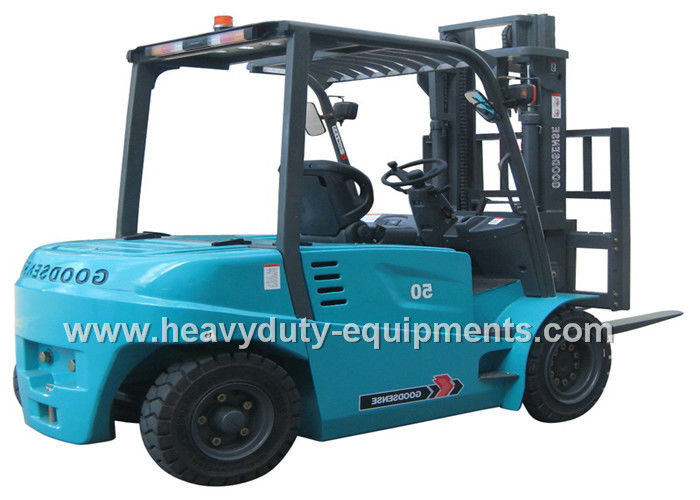

SINOMTP Counterbalance Lift Truck , 2X11 Kw Motor Drive 4 Ton Forklift
Specification:
| Product model | SINOMTP-FB40 | Overhead Guard Height(mm) | 2255 |
| Power source | Battery | Wheelbase(mm) | 2000 |
| Rated load capacity(kg) | 4000 | Overall length(with forks)(mm) | 4100 |
| Load centre(mm) | 500 | Gradeability(Laden)(%) | 15 |
| Lift height(mm) | 3000 | Front Tire | 28x12.5-15-24PR |
| Fork size (L×W×T)(mm) | 1070x150x50 | Rear Tire | 7.0-12-14PR |
| Overall Length(Length to fork face)(mm) | 3030 | Battery(Voltage/Capacity) (V/Ah) | 80/700 |
| Overall Width(mm) | 1600 | Fork carriage tilt(F/R)( °) | 6°/9° |
| Mast Lowered Height(mm) | 2330 | Drive motor(kw) | 2x11 |
| Mast Extended Height(mm) | 4255 | Lift motor(kw) | 26 |
Description:
Our production range for internal-combustion counter-balance forklift trucks is from 1T-33T. Economical engines for option both domestic and imported, simple and neat rows of piping design properly layout the hard soft pipes which greatly reduced the pipeline pressure.
Application:
This kind of forklift used for loading, unloading and stock filing of containers as well as other packages.
Advantage:
1. Specially designed solid overhead guard provides additional security for the operator.
2. Adjustable Steering wheel and safety seat.
3. Spacious workplace: Ample leg room helps to provide a relaxed, working environment, keeping the operator relaxed and focused throughout the working day for maximum productivity.
4. Flexible internal transmission flow providing efficiency, reliable, stable and entire machine operation conveniences.
