XGMA XG3200C Motor Grader adopted hydrodynamic torque converte

China XGMA XG3200C Motor Grader adopted hydrodynamic torque converte supplier

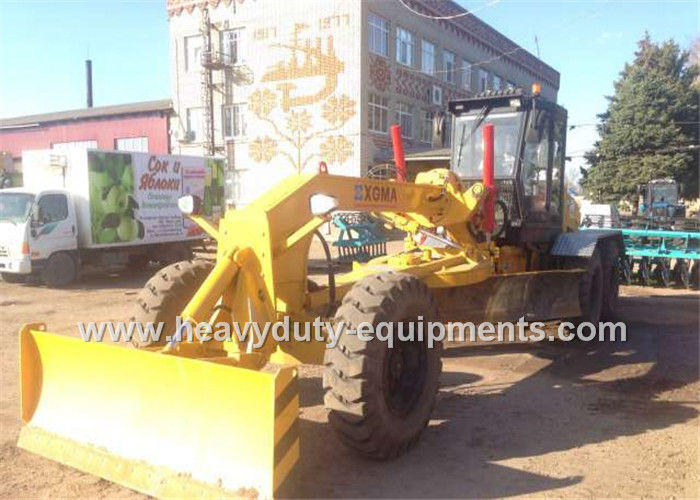

Large Image :  XGMA XG3200C Motor Grader adopted hydrodynamic torque converte

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC
Model Number: XG3200C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Detailed Product Description
Model: XG3200C Engine: Dongfeng Cummins
Total Weight (Kg): 16200 Rated Power (kw/hp): 160 /215
Rated Speed (rpm): 2200 Cutting Depth (mm): 500

XGMA XG3200C Motor Grader adopted hydrodynamic torque converte



Specification:



Model Technical Parameter XG3200C
Engine
Manufacturer Dongfeng Cummins
Model 6CTAA8.3-C215
Rated Power (kw/hp) 160 /215
Rated Speed (rpm) 2200
Blade
Height× String Height (mm) 3965×610
Reversing Angle (°) 360
Max. Blade Angle (°) 90
Cutting Depth (mm) 500
Drive Type Motor + worm case
Transmission
Type
Number of Gears F6/R3
Forward Speed (Km/h) 5.1,8.7,11.4, 19.5,24.1,40.1
Reverse Speed (Km/h) 5.1,11.4,24.1
Drive Type Rear-axle drive
Max. Traction Force (KN) ≤88
Tyre SPEC 17.5-25
Front Axle
Articulation Angle (°) 25, right and left
Type of Service Brake Hydraulic disc brake
Type of Parking Brake Hand-operatedshoe-type brake
Total Weight (Kg) 16200





Description:



As China motor grader manufacturer and supplier, we believe that we can offer you high quality with low price Chinese motor grader. Generally motor grader is used to even road base when the road is constructed, sometimes motor graders are used in maintaining dirt roads and gravel roads, even the grassland and snow removal, motor grader is essential equipment in farms, ranches, construction industry, municipal service etc. sometimes, motor grader is called road grader, because of road construction using, it is not all of the use of motor grader.

We have in the business of heavy equipment for many years, nowadays we can provide various kinds of heavy equipment that we are manufacturing such as hydraulic vibrating road roller, crawler excavator, crawler bulldozer, motor grader, wheel loaders. Here we simply introduce the motor grader we make below:



Advantage:



1. The hydraulic system of motor grader has double-pump, dual-circuit for stability and reliability.
2. Breaking system of our motor grader is used the advanced technology to make operating safe, the hydraulic breaking system makes the motor grader easily controlled and operating.
3. The roof mounted air conditioner in the cap, the roomy driving operating room gives operator opening view; air tight can prevent the dirt and noise from outside
4. The motor has streamline hood of the engine which make the machine easily maintained and heat radiating.
5, The users can choose some parts which are equipped the motor grader like blade, scarifier, ripper, circle and automatic leveling device etc.
