Product Details:
Payment & Shipping Terms:
|
| Model: | SR18 | Engine Model: | Cummins 6BT5.9-C152 |
|---|---|---|---|
| Total Weight(kg): | 18000 | Front Wheel Weight (kg): | 11350/11850 |
| Vibration Frequency (high/low) (Hz): | 33/29 | Static Linear Load (N/cm): | 530/554 |
| High Light: | road construction machinery,road machinery equipment |
||

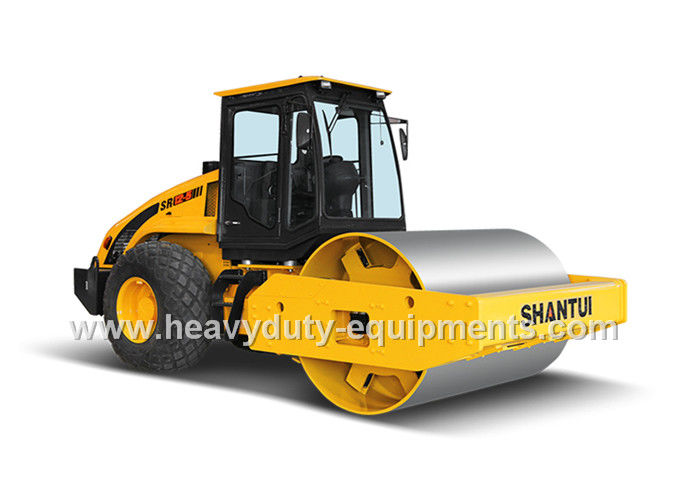

Shantui 18ton single drum vibratory road roller SR18 with 132kw cummins engine ,
Specification:
| Length × width × height (mm) | 6093×2450×3232 | Total weight(kg) | 18050/18500 |
| Front wheel weight (kg) | 11350/11850 | Theoretical gradeability (%) | 45 |
| Vibratory drum width (mm) | 2140 | Static linear load (N/cm) | 530/554 |
| High vibration amplitude | 1.8/1.5 | Low vibration amplitude | 0.95/0.8 |
| Vibration frequency (high/low) (Hz) | 33/29 | Centrifugal force (high/low) (kN) | 310/215 |
| Engine model | Cummins 6BTA5.9-C180 | Rated power (kW) | 132 |
Description:
SR18 full-hydraulic single-drum vibratory road roller incorporates double traveling drive system and high-span centrifugal force and the compacting scheme can be customized for different density specifications. This product is applicable for compacting various non-clayed soils and concretes and is an ideal machine for various industrial sites and infrastructure projects.
Advantage:
1. Standard double-amplitude function expands the application scope of the equipment.
2. The high span between high and low centrifugal forces helps the establishment of compacting schemes for different density specifications.
3. The design of the drum vibration parameters conforms to the requirements of working site and the pad foot drum can be assembled to expand the application scope.
4. Large angle openable hood, 8-point central pressure measuring system, maintenance-free battery, real-time monitoring of pressures and temperatures, and reasonable arrangement of diesel and working oil tanks enable Shantui roller to realize excellent maintenance performance, shorten the shutdown time, and improve the utilization rate of whole machine.
