|Rated Load Capacity:||3500kg||Fork Size (L×W×T):||1070×125×45mm|
|Engine Brand Tilt(F/R):||ISUZU||Displacement:||2369cc|

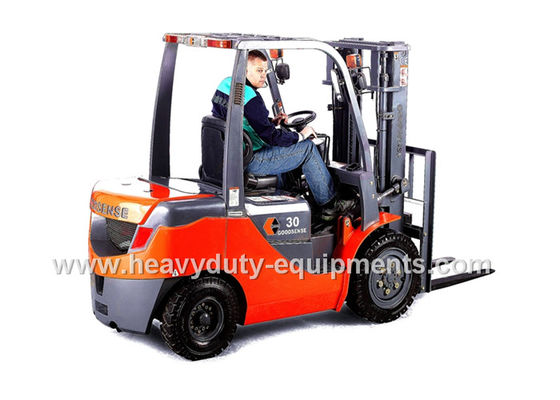

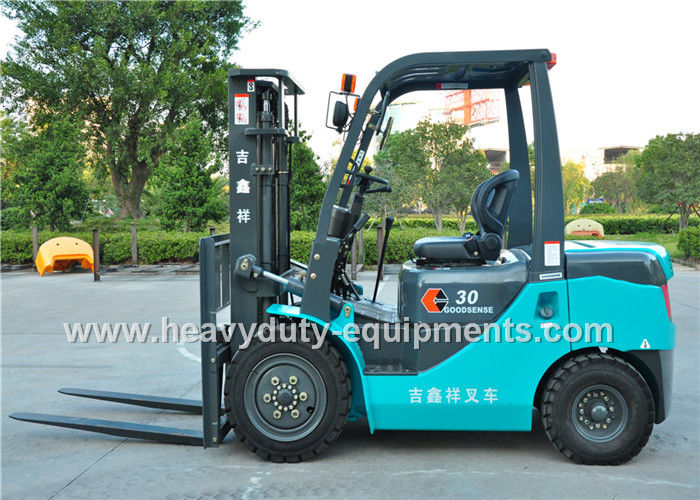

3500kg FD35 Industrial Forklift Truck Diesel Power Source 1070×125×45mm
|Type of model||FD35|
|Rated load capacity||3500kg|
|Fork size (L×W×T)||1070×125×45mm|
|Fork carriage tilt(F/R)||6°/12°|
|Overall Length(Length to fork face)||2710mm|
|Mast Lowered Height||2045mm|
|Mast Extended Height||4150mm|
|Overhead Guard Height||2090mm|
|No. of cylinder||4|
|Bore x Stroke||86X102mm|
1. Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue.
2. Wide-view mast gives the operator an enhanced forward visibility, which adds to the efficiency and safety of operator.
3. The instruments offer an easy accesses to the working condition of the truck, thus makes handling process more efficient and safe.
4. The powerful engine ensures SINOMTP truck’s high handling performance and offers an intrinsical safety and efficient operation.
