Product Details:
Payment & Shipping Terms:
|
| Model: | SR19R | Engine Model: | Cummins 6BTA5.9-C180 |
|---|---|---|---|
| Total Weight(kg): | 19500 | Length × Width × Height (mm): | 6093×2450×3232 |
| Theoretical Grade Ability (%): | 45 | High Vibration Amplitude: | 1.8/1.5 |
| High Light: | road machinery equipment,road construction safety equipment |
||

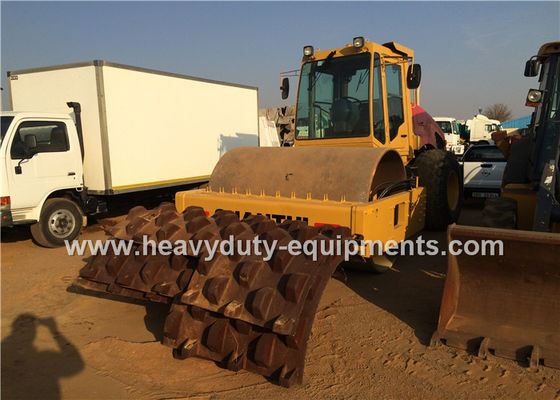

Shantui road roller SR19R having more inviting exterior designs and cabin ergonomics
Specification:
| Length × width × height (mm) | 6093×2450×3232 | Total weight(kg) | 19000 |
| Front wheel weight (kg) | 11350/11850 | Theoretical gradeability (%) | 45 |
| Vibratory drum width (mm) | 2140 | Static linear load (N/cm) | 530/554 |
| High vibration amplitude | 1.8/1.5 | Low vibration amplitude | 0.95/0.8 |
| Vibration frequency (high/low) (Hz) | 33/29 | Centrifugal force (high/low) (kN) | 310/215 |
| Engine model | Cummins 6BTA5.9-C180 | Rated power (kW) | 135 |
Description:
SR19P full-hydraulic single-drum vibratory road roller incorporates double traveling drive system and high-span centrifugal force and the compacting scheme can be customized for different density specifications.
Advantage:
1. The cab is equipped with air conditioning system and the rubber damper design to isolate the operator from the vibration source to remarkably relieve the working strength.
2. The double traveling drive system provides power to both front drum and rear axle, with four speeds at your choice, of which the low speed is suitable for the vibratory compacting and climbing and the high speed can enable the rapid transfer and large-range movement of the machine.
3. Standard double-amplitude function expands the application scope of the equipment.
4. The high span between high and low centrifugal forces helps the establishment of compacting schemes for different density specifications.
5. The design of the drum vibration parameters conforms to the requirements of working site and the padfoot drum can be assembled to expand the application scope.
