Product Details:
Payment & Shipping Terms:
|
| Model: | SR26/5 | Engine Model: | Cummins 6BTA5.9-C180 |
|---|---|---|---|
| Total Weight(kg): | 26200 | Length × Width × Height (mm): | 6501×3151×2562 |
| Front Wheel Weight (kg): | 17000/17200 | ||
| High Light: | road construction machinery,road machinery equipment |
||

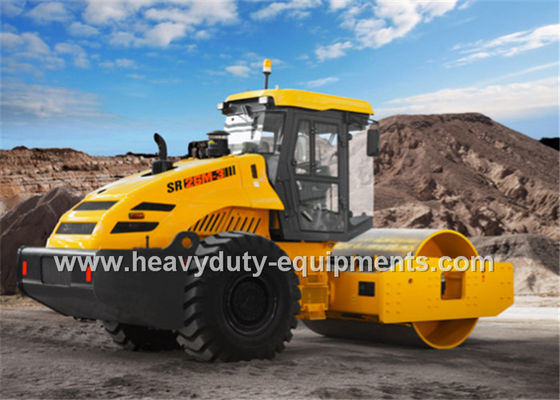

Shantui Full hydraulic single drum road roller SR26 equipped with the CUMMINS engine 6CTAA8,3/C215
Specification:
| Length × width × height (mm) | 6501×3151×2562 | Total weight(kg) | 26200 |
| Front wheel weight (kg) | 17000/17200 | Theoretical grade ability (%) | 45 |
| Vibratory drum width (mm) | 2140 | Static linear load (N/cm) | 794/804 |
| High vibration amplitude | 1.8/1.64 | Low vibration amplitude | 1.1/1.04 |
| Vibration frequency (high/low) (Hz) | 32/28 | Centrifugal force (high/low) (kN) | 420/300 |
| Engine model | Cummins 6CTAA8.3-C215 |
Description:
SR26-5/SR26P-5 is a high-tonnage full-hydraulic vibratory road roller, in which the China’s pioneered articulated full-hydraulic steering gear for the slewing support realizes more flexible and convenient steering motions of the machine, featuring simple and convenient operations. This product is applicable for compacting base layers, sub-base layers, and fills and is an ideal extra-heavy-duty compacting machine for various large industrial construction projects.
Advantage:
1. Cummins 6CTAA8.3-C215 engine conformed to Euro-II emission regulation and, compared with like products, reduces the number of parts by >25% and saves the maintenance time by >50%, featuring low maintenance cost. The design of exhaust bypass valve ensures more perfect low speed performance and better power performance.
2. Shantui’s patented new vibratory drum features more excellent structure and stability performances. The super-high lubricating oil capacity guarantees the good lubrication and cooling for the vibra
3. The vibratory pumps and vibratory motors adopt international renowned brand products to guarantee the reliability and compacting performance of the vibration system.
4. The single gearshift joystick can effectively improve the working efficiency of the operator and relieve the fatigue.
