Product Details:
Payment & Shipping Terms:
|
| Engine: | ISUZU AA-6HK1XQP | Overall Operating Weight: | 33800kg |
|---|---|---|---|
| Bucket Capacity: | 1.6 M³ | Max. Excavation Force: | 162/240 KN |
| Swing Speed: | 9.8 R/min | Traveling Speed: | 5.3/3.1 Km/h |
| High Light: | hydraulic shovel excavator,hydraulic system excavator |
||

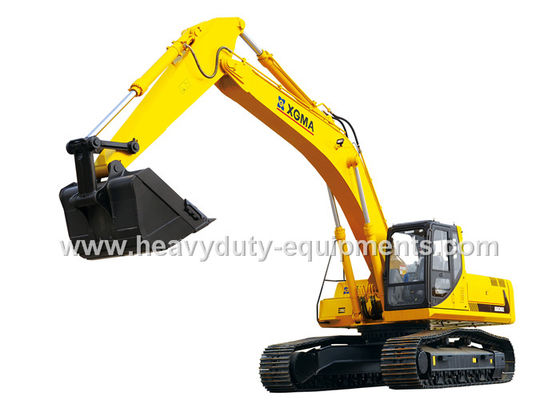

XGMA XG836EL excavator used ISUZU engine and 1.6 m³ bucket
| Engine |
ISUZU AA-6HK1XQP |
Working device | Standard arm |
| Overall operating weight | 33800kg | Bucket capacity | 1.6 m³ |
| Max. excavation force | 162/240 KN | Swing speed | 9.8 r/min |
| Traveling speed | 5.3/3.1 km/h |
Overall dimensions (LxWxH) |
11170x3440x3265 mm |
| Max digging radius | 11120 mm | Max digging depth | 7360mm |
| Max digging height | 10240mm | Engine rated power | 190.5 kw |
| Length of track | 4941 mm | Gradeability | 35° |
| Track gauge | 2740 mm | Cabin | Standard cab |
Description:
A new power controller is used to add the dynamic matching & adjusting feature under the S mode. As a result, the engine’s speed under the S mode is increased by 100rpm, and the operating efficiency is increased by 8%.
Advantage:
1.Powered bu the high-quality Isuzu turbocharged&inter cooled engine, which is a fuel-efficient low-emission engine.
2.The machine’s lifting force is increased by 14%, resulting in the substantial increase of operating efficiency.
3.Main stressed parts are built by welding the new, high-strength steel parts together, to increase the strength of the work equipment.
4.The draw bar pull during travel is up to 270KN, increased by 8%.
Application:
Excavator is a multipurpose machinery of earthwork construction, mainly for digging and loading.
