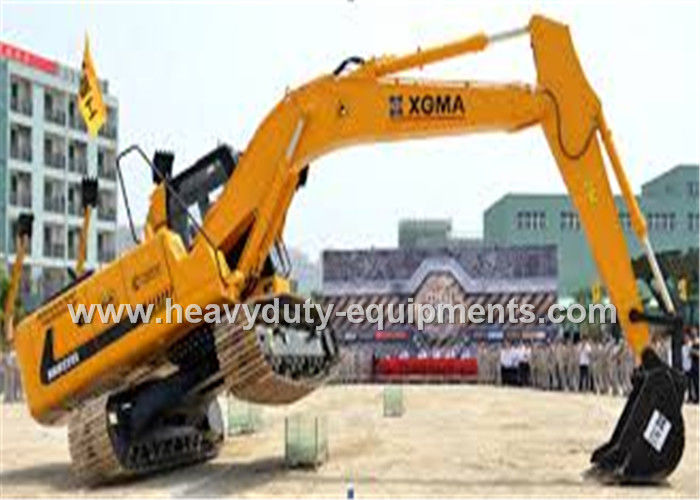

Crawler Mounted Hydraulic Mining Excavator Long Boom 4941mm Track Length

China Crawler Mounted Hydraulic Mining Excavator Long Boom 4941mm Track Length supplier

Large Image :  Crawler Mounted Hydraulic Mining Excavator Long Boom 4941mm Track Length

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: XG836EL

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: NUDE
Delivery Time: 35 days after payment
Supply Ability: 100 units per month
Detailed Product Description
Engine: ISUZU AA-6HK1XQP Overall Operating Weight: 33800kg
Bucket Capacity: 1.6 M³ Max Digging Radius: 11120 Mm
Max Digging Depth: 7360mm Max Digging Height: 10240mm

Crawler Mounted Hydraulic Mining Excavator Long Boom 4941mm Track Length







Engine

ISUZU

AA-6HK1XQP

Working device Standard arm
Overall operating weight 33.8t Bucket capacity 1.6 m³
Max. excavation force 162/240 KN Swing speed 9.8 r/min
Traveling speed 5.3/3.1 km/h

Overall dimensions

(LxWxH)

11170x3440x3265 mm
Max digging radius 11120 mm Max digging depth 7360mm
Max digging height 10240mm Engine rated power 190.5 kw
Length of track 4941 mm Gradeability 35°
Track gauge 2740 mm Cabin Standard



Description:

Powered by the high-quality Isuzu turbocharged & intercooled engine, which is a fuel-efficient low-emission engine.



Advantage:

  1. Powered bu the high-quality Isuzu turbocharged&inter cooled engine, which is a fuel-efficient low-emission engine.
  2. The machine’s lifting force is increased by 14%, resulting in the substantial increase of operating efficiency.
  3. Main stressed parts are built by welding the new, high-strength steel parts together, to increase the strength of the work equipment.
  4. The draw bar pull during travel is up to 270KN, increased by 8%.



Application:

Excavator is important in construction project, by using bucket to dig materials and loading to transport trucks.

Crawler Mounted Hydraulic Mining Excavator Long Boom 4941mm Track Length
