Product Details:
Payment & Shipping Terms:
|
| Engine: | Cummins QSM11 | Overall Operating Weight: | 46300kg |
|---|---|---|---|
| Bucket Capacity: | 2.1 M³ | Max Digging Radius: | 12157 Mm |
| Max Digging Depth: | 7970mm | Max Digging Height: | 11030mm |
| High Light: | hydraulic shovel excavator,crawler hydraulic excavator |
||

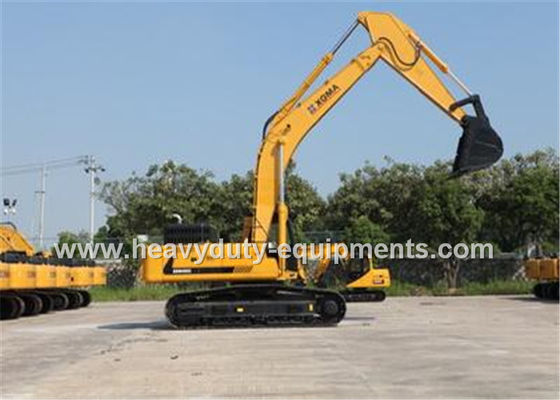

XGMA XG845EL excavator with 43.6ton operating weight and 2.1 m³bucket
| Engine | Cummins QSM11 | Working device | Standard arm |
| Overall operating weight | 46300kg | Bucket capacity | 2.1 m³ |
| Max. excavation force | 221/298 KN | Swing speed | 9.8 r/min |
| Traveling speed | 5.3/3.1 km/h |
Overall dimensions (LxWxH) |
11270x3440x3265 mm |
| Max digging radius | 12157 mm | Max digging depth | 7970mm |
| Max digging height | 11030mm | Engine rated power | 264 kw |
| Length of track | 5479 mm | Gradeability | 35° |
| Track gauge | 2740 mm | Cabin | Standard cab |
Description:
Main stressed parts including the boom, the stick and the bucket are built by welding the new, high-strength steel parts together, to increase the strength of the work equipment, and to increase their service life by more than 30%.
Advantage:
1. Strong power, accurate control, low fuel consumption and low noise: Powered by the high-quality Cummins QSM111 electronic control supercharged diesel engine imported from America with original packing.
2. International quality hydraulic configuration, high composite efficiency: By setting main pump flow to be as high as 380 L/min and equipping KPM improved control valve, obtain fast digging efficiency and short work circulating time.
3. Strengthening Design for Mine Condition- Chassis: adopt lengthening, dilated and reinforced walking bar design, key components such as housing washer and supporting chain wheel mounting block etc.
4. Adopt forged pieces, there are two lengthening guardrail on single, alto increase the complete machine more stable and reliability.
Application:
Excavator is the most import machine in construction project, mainly for digging.
