Product Details:
Payment & Shipping Terms:
|
| Model: | SINOMTP-FD120B | Power Source: | Diesel |
|---|---|---|---|
| Rated Load Capacity: | 12000kg | Mast Lowered Height: | 3100 Mm |
| Mast Extended Height: | 4540 Mm | Overhead Guard Height: | 2590mm |
| High Light: | forklift loading truck,forklift pallet truck |
||

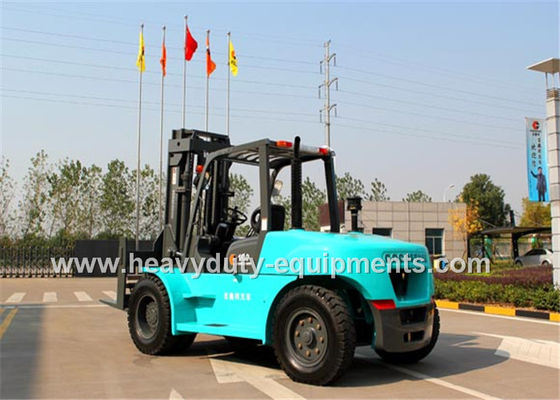

Sinomtp FD120B diesel forklift with Rated load capacity 12000kg and ISUZU engine
Specification:
| Type of model | FD120B |
| Power source | Diesel |
| Rated load capacity | 12000 kg |
| Load centre | 600 mm |
| Lift height | 3000 mm |
| Fork size (L×W×T) | 1520×180×100 mm |
| Fork carriage tilt(F/R) | 6°/12° |
| Overall Length(Length to fork face) | 4700 mm |
| Overall Width | 2200 mm |
| Mast Lowered Height | 3100 mm |
| Mast Extended Height | 4540 mm |
| Overhead Guard Height | 2590 mm |
| Gradeability(Laden) | 20% |
| Front Tire | 9.00-20 |
| Rear Tire | 9.00-20 |
Description:
Our production range for internal-combustion counterbalance forklift trucks is from 1T-33T, Economical engines for option both domestic and imported, simple and neat rows of piping design properly layout the hard and soft pipes which greatly reduced the pipeline pressure. High strength integral hood with thermal and sound insulation materials tile-cylinder built-in designs and large operation space greatly improves the operator’s maximum comfort.
Advantage:
1. The instruments offer an easy accesses to the working condition of the truck, thus makes handling process more efficient and safe.
2. Supper low and non-slip make operating convenient and safe.
3. Specially designed solid overhead guard provides additional security for the operator.
Wide-view mast gives the operator an enhanced forward visibility, which adds to the efficiency and safety of operator.
