Product Details:
Payment & Shipping Terms:
|
| Model: | SR/18M | Engine Model: | Yuchai YC6B150Z-T21 |
|---|---|---|---|
| Total Weight (kg): | 18000/18500 | Front Wheel Weight (kg): | 9000/9500 |
| Vibration Frequency (high/low) (Hz): | 30 | Low Vibration Amplitude: | 1.0/0.8 |
| High Light: | road construction machinery,road machinery equipment |
||

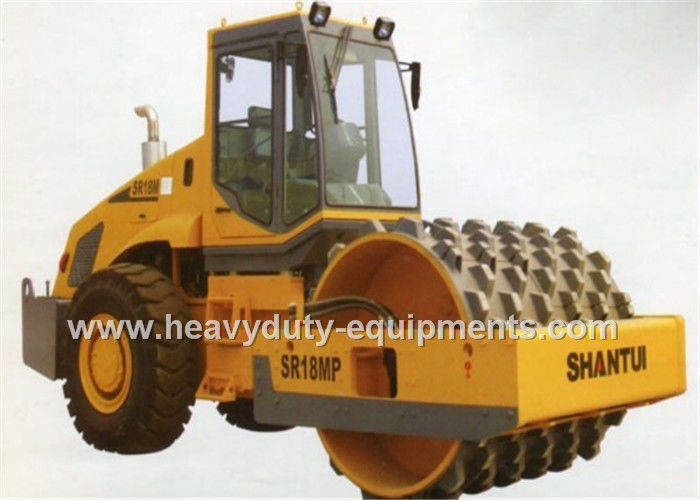

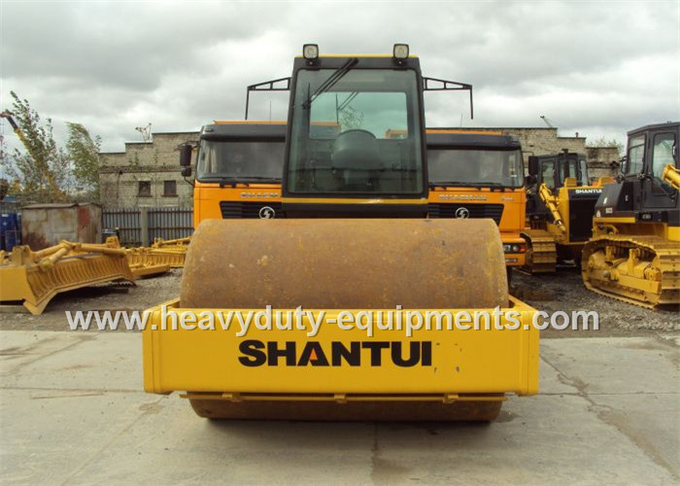

Shantui SR18M mechanicao single drum road roller, 18ton weight, Yuchai engine
Specification:
| Model | SR18M | Total weight (kg) | 18000/18500 |
| Front wheel weight (kg) | 9000/9500 | Theoretical gradeability (%) | 30 |
| Vibratory drum width (mm) | 2140 | Static linear load (N/cm) | 420/440 |
| High vibration amplitude | 2.0/1.6 | Low vibration amplitude | 1.0/0.8 |
| Vibration frequency (high/low) (Hz) | 30 | Centrifugal force (high/low) (kN) | 335/190 |
| Engine model | Yuchai YC6B150Z-T21 | Length × width × height (mm) | 5990×2370×3215 |
Description:
SR18M mechanical single-drum vibratory road roller adopts articulated frame, full-hydraulic steering system, and mechanical transmission and is powered by diesel engine to realize reliable performance and best cost performance. This machine is suitable for the high-density compacting of the non-clayed materials as well as the semi-clayed materials and is a preferred machine for large infrastructure projects.
Advantage:
1.Yuchai YC6B150Z-T21 engine features less parts number, light weight, high universality, compact and reasonable structure, and high efficiency and energy-saving.
2.Shantui’s patented new vibratory drum features more excellent structure and stability performances. The super-high lubricating oil capacity guarantees the good lubrication and cooling for the vibra
3.The vibratory pumps and vibratory motors adopt international renowned brand products to guarantee the reliability and compacting performance of the vibration system.
4.Two independent brake systems (service brake and parking brake) feature stable braking, high safety and reliability, simple structure, and easy maintenances.
