Product Details:
Payment & Shipping Terms:
|
| Model: | SINOMTP-FD330B | Power Source: | Diesel |
|---|---|---|---|
| Rated Load Capacity: | 33000kg | Fork Carriage Tilt(F/R): | 6°/12° |
| Overall Length(Length To Fork Face): | 6820 Mm | Overall Width: | 3050 Mm |
| High Light: | forklift loading truck,forklift pallet truck |
||

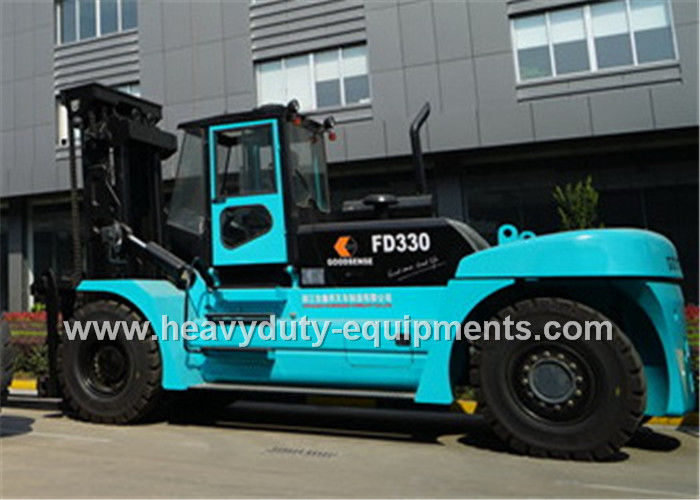

ISUZU Engine Lifted Diesel Trucks Sinomtp FD330 Forklift Lifting Equipment
Specification:
| Type of model | FD330B |
| Power source | Diesel |
| Rated load capacity | 33000kg |
| Load centre | 1200 mm |
| Lift height | 4000 mm |
| Fork size (Length) | 2440 mm |
| Fork carriage tilt(F/R) | 6°/12° |
| Overall Length(Length to fork face) | 6820 mm |
| Overall Width | 3050 mm |
| Mast Lowered Height | 4000 mm |
| Mast Extended Height | 6000 mm |
| Overhead Guard Height | 3500 mm |
| Gradeability(Laden) | 20 % |
| Front Tire | 14.00-24(SE) |
| Rear Tire | 14.00-24(SE) |
Description:
Our production range for internal-combustion counterbalance forklift trucks is from 1T-33T, Economical engines for option both domestic and imported, simple and neat rows of piping design properly layout the hard and soft pipes which greatly reduced the pipeline pressure. High strength integral hood with thermal and sound insulation materials tile-cylinder built-in designs and large operation space greatly improves the operator’s maximum comfort.
Advantage:
1. Specially designed solid overhead guard provides additional security for the operator.
2. Wide-view mast gives the operator an enhanced forward visibility, which adds to the efficiency and safety of operator.
3. Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue.
Supper low and non-slip make operating convenient and safe.
