Product Details:
Payment & Shipping Terms:
|
| Model: | SINOMTP-FY18 | Power Source: | Gasoline/LPG |
|---|---|---|---|
| Rated Load Capacity: | 1800kg | Mast Lowered Height: | 1995mm |
| Overhead Guard Height: | 2040mm | Gradeability(Laden): | 20% |
| High Light: | forklift pallet truck,forklift lift truck |
||

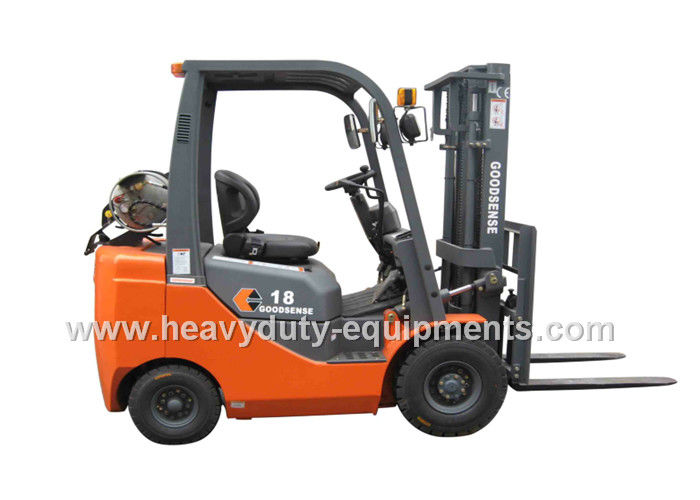

Sinomtp FY18 Gasoline / LPG forklift with 144 kN Rated torque
Specification:
| Type of model | FY18 |
| Power Source | Gasoline/LPG |
| Rated load capacity | 1800KG |
| Load centre | 500 mm |
| Lift height | 3000 mm |
| Fork size (L×W×T) | 920×120×35 mm |
| Fork carriage tilt(F/R) | 6°/12° |
| Overal Length(Length to fork face) | 2285 mm |
| Overall Width | 1086 mm |
| Mast Extended Height | 3940 mm |
| Mast Lowered Height | 1995 mm |
| Overhead Guard Height | 2040 mm |
| Gradeability(Laden) | 20% |
| Front Tire | 6.50-10-10PR |
| Rear Tire | 5.00-8-10PR |
Description:
| Engine Brand | Model | Rated output (kw/r.p.m) |
Rated torque (Nm/r.p.m) |
No. of cylinder | BoreXStroke (mm) | Displacement (cc) |
| NISSAN | K21 | 31.2/2250 | 143.7/1600 | 4 | 89X83 | 2065 |
Advantage:
1. Wide-view mast gives the operator an enhanced forward visibility, which adds to the efficiency and safety of operator.
2. The instruments offer an easy accesses to the working condition of the truck, thus makes handling process more efficient and safe.
3. Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue.
4. The powerful engine ensures SINOTRUK truck’s high handling performance and offers an intrinsical safety and efficient operation.
