Product Details:
Payment & Shipping Terms:
|
| Engine: | Weichai Engine WP4G95 | Transmission System: | Carraro Transmission+Forward IV / Reverse III |
|---|---|---|---|
| Axle: | Carraro Axle | Hydraulic System: | Mechanical Operation |
| Rated Load (kg): | 1800 | Cooling/heating System: | Air Conditioner |
| High Light: | road construction machinery,road construction safety equipment |
||

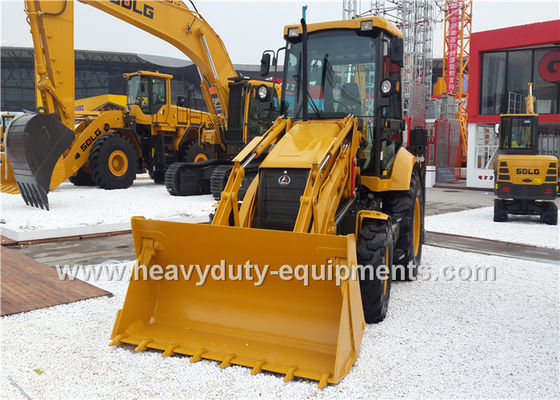

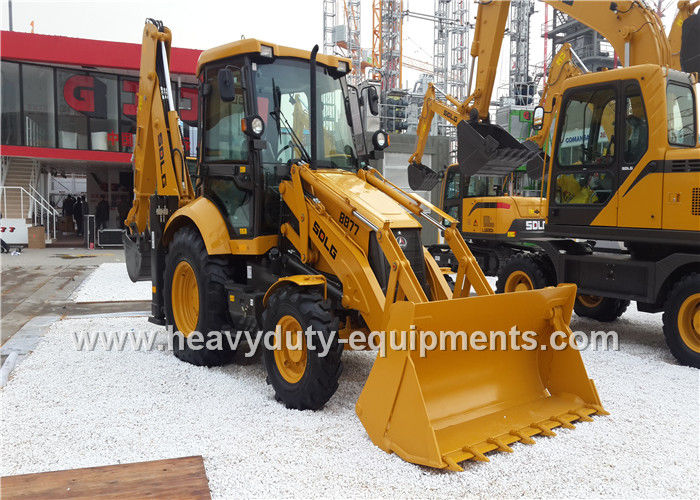

1800kg SDLG Backhoe Loader B877 Equipment For Road Construction Low Fuel Consumption
| Model | B877 | Engine | Weichai Engine WP4G95 |
| Transmission system | Carraro transmission+Forward IV/Reverse III | Axle | Carraro axle |
| Working device | Standard rod | Hydraulic system | Mechanical operation |
| Control valve | Loading 3 valve | Cabin | standard |
| Cooling/heating system | Air conditioner |
Rated load (kg) |
1800 |
| Bucket capacity | Load 6 i Multi-fuction bucket 1.0 m³ | Max dumping height (mm) |
2716 (-45 ° tilt angle) |
| Max digging depth (mm) | 4329 |
Dimension (mm) |
5865x2270x3599 |
|
Standard operating weight (kg) |
8400 | Attachment | Excavate GP bucket 0.18 m³ |
Description:
B877 is a small multi-function engineering machine newly designed with high cost performance and is widely applied in various building construction engineering, such as road construction and caring, cable laying, electricity and airport engineering, municipal construction and quarrying work, in city and countryside.
Advantage:
1. Low-speed and large-torque Weichai engine meeting the requirement of China II emission standard is provided, with low fuel consumption, strong power and high reliability.
2. Electrically-controlled shift transmission case of famous international brand is used, with four front gear positions and four rear gear positions and is easy and quick to operate
3. Load-sensing full hydraulic steering system is used, with light and quick steering and stable and reliable performance and is stable to operate; hydraulic system with confluent.
4. Reinforced excavating movable arm and bucket rod are used, with high reliability; Movable arm swing has damping buffer, which can ensure a stable and successful operation.
Application:
It is widely applied in road construction and caring, meanwhile with loading and digging function.
