FY30 Gasoline / LPG forklift , 3000mm Lift Height Counterbalance Forklift Truck

China FY30 Gasoline / LPG forklift , 3000mm Lift Height Counterbalance Forklift Truck supplier
FY30 Gasoline / LPG forklift , 3000mm Lift Height Counterbalance Forklift Truck supplier FY30 Gasoline / LPG forklift , 3000mm Lift Height Counterbalance Forklift Truck supplier

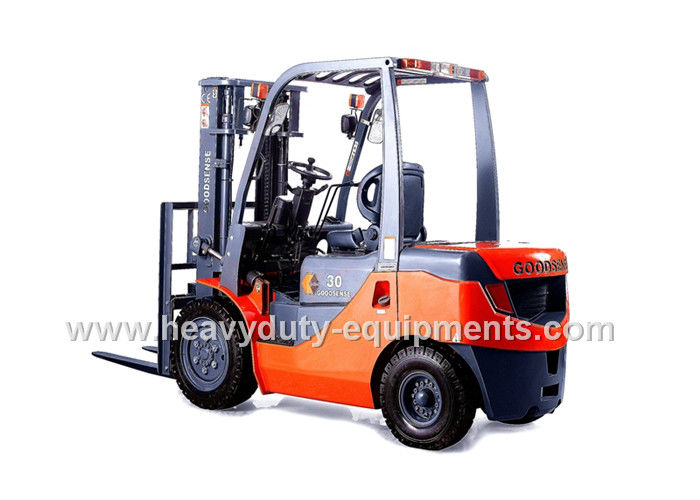

Large Image :  FY30 Gasoline / LPG forklift , 3000mm Lift Height Counterbalance Forklift Truck

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV/CE
Model Number: SINOMTP-FY30

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude, but with wax sprayed.
Delivery Time: 25 working days after received payment
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Model: SINOMTP-FY30 Power Source: Gasoline/LPG
Rated Load Capacity: 3000kg Load Centre: 500mm
No. Of Cylinder: 4 Engine Brand: GM / MITSUBISHI
High Light:

forklift loading truck

,

forklift lift truck

FY30 Gasoline / LPG forklift , 3000mm Lift Height Counterbalance Forklift Truck



Specification:



Type of model FY30
Power source Gasoline/LPG
Rated load capacity 3000kg
Load centre 500 mm
Lift height 3000 mm
Fork size (L×W×T) 1070×125×45 mm
Fork carriage tilt(F/R) 6°/12°
Overall Length(Length to fork face) 2730 mm
Overall Width 1225 mm
Mast Lowered Height 2045 mm
Mast Extended Height 4150 mm
Overhead Guard Height 2090 mm
Gradeability(Laden) 20%
Front Tire 28×9-15-12PR
Rear Tire 6.50-10-10PR



Description:



Engine Brand Unit MITSUBISHI GM
Model   4G64 GM3.0
Rated output kw/r.p.m 36.8/2500 40/2500
Rated torque Nm/r.p.m 161/1600 200/1600
No. of cylinder



4 4
Bore x Stroke mm 86.5X100 101.6X91.44
Displacement cc 2350 3000



Advantage:



Our production range for internal-combustion counterbalance forklift trucks is from 1T-33T, Economical engines for option both domestic and imported, simple and neat rows of piping design properly layout the hard and soft pipes which greatly reduced the pipeline pressure. High strength integral hood with thermal and sound insulation materials tile-cylinder built-in designs and large operation space greatly improves the operator’s maximum comfort.
