Product Details:
Payment & Shipping Terms:
|

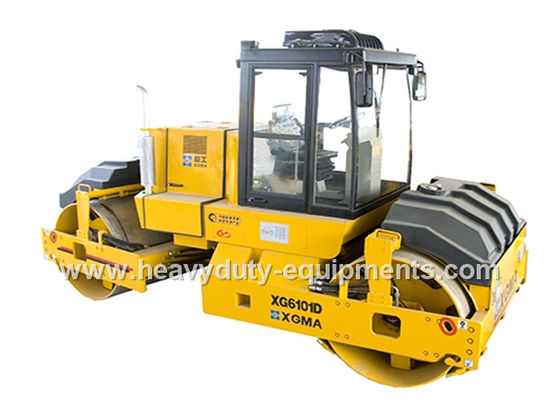

| Model: | XG6101D | Engine: | Cummins 6BT5.9 |
|---|---|---|---|
| Operating Weight (kg): | 10000 | Min. Turning Radius (mm): | 5850 |
| Rated Speed (r/min): | 2400 | Overall Dimensions (L×W×H) (mm): | 4990×1810×3270 |
| High Light: | road construction machinery,road construction safety equipment |
||
Specification:
| Model | XG6101D | 1 gear (km/h) | 0-9.7 |
| Engine Model | Cummins 6BT5.9 | Rated Speed (r/min) | 2400 |
| Operating Weight (kg) | 10000 | Engine Rated Power (KW) | 92 |
| Drum(D×W) (mm) | φ1215×1660 | Vibration Frequency (Hz) | 30;35 |
| Min. Turning Radius (mm) | 5850 | Drum Weight (kg) | 5000/5000 |
| Max. Gradeability (%) | 30 | Centrifugal Force (KN) | 25/123 |
| Theoretical Amplitude (mm) | 0.4/0.83 |
Overall Dimensions (L×W×H) (mm) |
4990×1810×3270 |
Description:
SINOMTP vibratory roller’s cab is equipped with air-conditioner to provide a high level of comfort.
Advantage:
1. Adopt the Dongfeng-Cummins diesel engine for reliable performance.
2. The drive, vibration and steering mechanisms are hydro-statically operated.
3.To ensure the quality of our road roller, we use SAUER or REXROTH pumps, motors, Sweden SKF or Germany FAG vibratory bearings.
4.Protection mechanism from mis-operation.
Application:
It can be used for compaction operation of filler materials.
