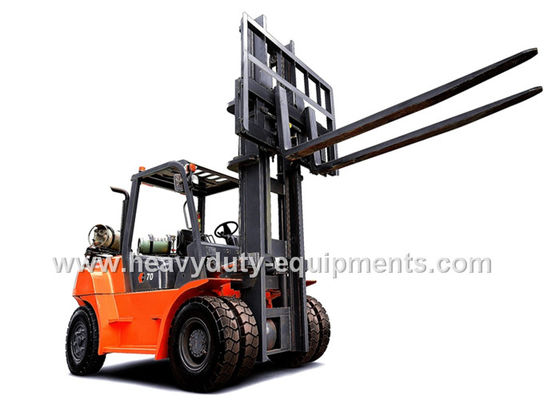

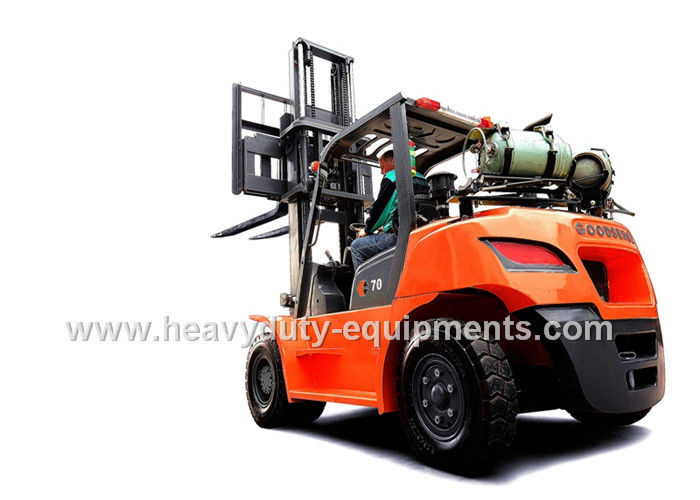

Sinomtp FY70 Gasoline / LPG forklift with 3350mm Turning Radius

China Sinomtp FY70 Gasoline / LPG forklift with 3350mm Turning Radius supplier
Sinomtp FY70 Gasoline / LPG forklift with 3350mm Turning Radius supplier Sinomtp FY70 Gasoline / LPG forklift with 3350mm Turning Radius supplier

Large Image :  Sinomtp FY70 Gasoline / LPG forklift with 3350mm Turning Radius

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV/CE
Model Number: SINOMTP-FY70

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude, but with wax sprayed.
Delivery Time: 25 working days after received payment
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Model: SINOMTP-FY70 Power Source: Gasoline/LPG
Rated Load Capacity: 7000kg Turning Radius (outside): 3250mm
Overhead Guard Height: 2470mm Min. Intersecting Aisle: 2960mm
High Light:

forklift pallet truck

,

forklift lift truck

Sinomtp FY70 Gasoline / LPG forklift with 3350mm Turning Radius



Specification:



General 1 Model Unit FY70
2 Power type   LPG
3 Rated Capacity kg 7000
4 Load center mm 600
Characteristic&Dimension 5 Lift Height mm 3000
6 Fork Size L×W×T mm 1220×150×60
7 Mast title Angle F/R Deg 6°/12°
8 Front Overhang (Wheel center to fork face) mm 590
9 Ground clearance (Bottom of mast) mm 200
10 Overall Dimension Length to face of fork (without fork) mm 3450
11 Overall width mm 2010
12 Mast Lowered Height mm 2550
13 Mast Extended Height (with backrest) mm 4380
14 Overhead Guard Height mm 2470
15 Turning Radius (outside) mm 3250
16 Min. intersecting aisle mm 2960
Performance 17 Speed Travel(no load) km/h 30
18 Lifting(full load) mm/s 500
19 Max Gradeability % 20
Chassis 20 Tire Front   8.25-15-14 PR
21 Rear   8.25-15-14 PR
22 Wheelbase mm 2250
23 Service Weight kg 8550
Power&Transmission 24 Battery Voltage/Capacity V/Ah (12V/80AH) × 2
32   Fuel Tank Capacity L 140
33 Transmission Type   Hydraulic
34 Stage FWD/RVS   2/2
35 Operating pressure for attachment Mpa 19



Description:



Our production range for internal-combustion counterbalance forklift trucks is from 1T-33T, Economical engines for option both domestic and imported, simple and neat rows of piping design properly layout the hard and soft pipes which greatly reduced the pipeline pressure. High strength integral hood with thermal and sound insulation materials tile-cylinder built-in designs and large operation space greatly improves the operator’s maximum comfort.



Advantage:



1. Specially designed solid overhead guard provides additional security for the operator.

2. Wide-view mast gives the operator an enhanced forward visibility, which adds to the efficiency and safety of operator.

3. Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue.

4. Supper low and non-slip make operating convenient and safe.Sinomtp FY70 Gasoline / LPG forklift with 3350mm Turning Radius
